TAS5613A Series

150-W stereo, 300-W mono, 18- to 38-V supply, analog input Class-D audio amplifier

Catalog

150-W stereo, 300-W mono, 18- to 38-V supply, analog input Class-D audio amplifier

Part	Operating Temperature [Max]	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Output Type	Mounting Type	Package / Case	Package / Case [custom]	Package / Case [custom]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load	Supplier Device Package

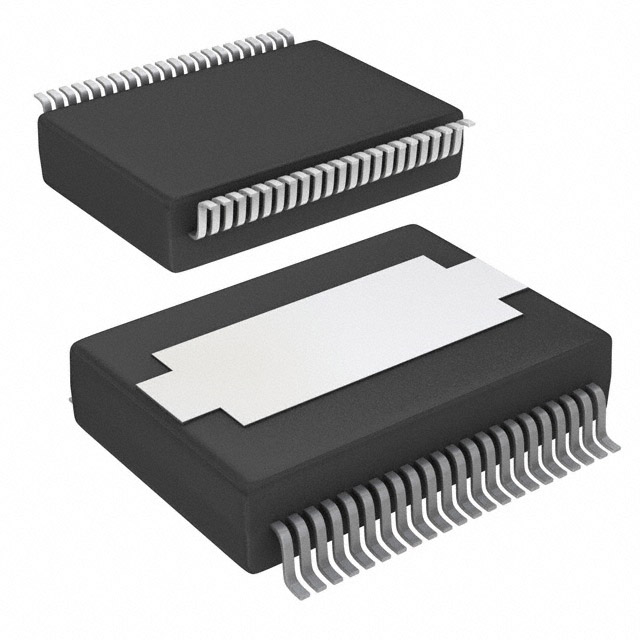

Texas Instruments TAS5613ADKD	70 °C	Class D	38 V	18 V	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	1-Channel (Mono) or 2-Channel (Stereo)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	300 W	200 W	44-HSSOP
Texas Instruments TAS5613APHDR	70 °C	Class D	38 V	18 V	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	1-Channel (Mono) or 2-Channel (Stereo)	Surface Mount	64-TQFP Exposed Pad			300 W	200 W	64-HTQFP (14x14)
Texas Instruments TAS5613PHD	70 °C	Class D	38 V	18 V	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	1-Channel (Mono) or 2-Channel (Stereo)	Surface Mount	64-TQFP Exposed Pad			300 W	200 W	64-HTQFP (14x14)
Texas Instruments TAS5613ADKDR	70 °C	Class D	38 V	18 V	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	1-Channel (Mono) or 2-Channel (Stereo)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	300 W	200 W	44-HSSOP
Texas Instruments TAS5613PHDR	70 °C	Class D	38 V	18 V	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	1-Channel (Mono) or 2-Channel (Stereo)	Surface Mount	64-TQFP Exposed Pad			300 W	200 W	64-HTQFP (14x14)

Catalog

150-W stereo, 300-W mono, 18- to 38-V supply, analog input Class-D audio amplifier

Key Features

• Active Enabled Integrated Feedback Provides: (PurePath™ HD)Signal Bandwidth up to 80kHz for High Frequency Content From HD SourcesUltra Low 0.03% THD at 1W into 4ΩFlat THD at all Frequencies for Natural Sound80dB PSRR (BTL, No Input Signal)>100dB (A Weighted) SNRClick and Pop Free Startup and StopPin compatible with TAS5630, TAS5615 and TAS5611Multiple Configurations Possible on the Same PCB:Mono Parallel Bridge Tied Load (PBTL)Stereo Bridge Tied Load (BTL)2.1 Single Ended (SE) Stereo Pair and Bridge Tied Load SubwooferTotal Output Power at 10%THD+N300W in Mono PBTL Configuration150W per Channel in Stereo BTL ConfigurationTotal Output Power in BTL Configuration at 1%THD+N160W Stereo into 3Ω125W Stereo into 4Ω85W Stereo into 6Ω65W Stereo into 8Ω>90% Efficient Power Stage With 60-mΩ Output MOSFETsSelf-Protection Design (Including Undervoltage, Overtemperature, Clipping,and Short Circuit Protection) With Error ReportingEMI Compliant When Used With Recommended System DesignThermally Enhanced Package Options:PHD (64-pin QFP)DKD (44-pin PSOP3)APPLICATIONSHome Theater SystemsAV ReceiversDVD/Blu-ray Disk ReceiversMini Combo SystemsActive Speakers and SubwoofersAll other trademarks are the property of their respective ownersAll other trademarks are the property of their respective ownersActive Enabled Integrated Feedback Provides: (PurePath™ HD)Signal Bandwidth up to 80kHz for High Frequency Content From HD SourcesUltra Low 0.03% THD at 1W into 4ΩFlat THD at all Frequencies for Natural Sound80dB PSRR (BTL, No Input Signal)>100dB (A Weighted) SNRClick and Pop Free Startup and StopPin compatible with TAS5630, TAS5615 and TAS5611Multiple Configurations Possible on the Same PCB:Mono Parallel Bridge Tied Load (PBTL)Stereo Bridge Tied Load (BTL)2.1 Single Ended (SE) Stereo Pair and Bridge Tied Load SubwooferTotal Output Power at 10%THD+N300W in Mono PBTL Configuration150W per Channel in Stereo BTL ConfigurationTotal Output Power in BTL Configuration at 1%THD+N160W Stereo into 3Ω125W Stereo into 4Ω85W Stereo into 6Ω65W Stereo into 8Ω>90% Efficient Power Stage With 60-mΩ Output MOSFETsSelf-Protection Design (Including Undervoltage, Overtemperature, Clipping,and Short Circuit Protection) With Error ReportingEMI Compliant When Used With Recommended System DesignThermally Enhanced Package Options:PHD (64-pin QFP)DKD (44-pin PSOP3)APPLICATIONSHome Theater SystemsAV ReceiversDVD/Blu-ray Disk ReceiversMini Combo SystemsActive Speakers and SubwoofersAll other trademarks are the property of their respective ownersAll other trademarks are the property of their respective owners

Description

The TAS5613A is a high-performance analog input Class D amplifier with integrated closed loop feedback technology (known as PurePath™ HD). It has the ability to drive up to 150 W.Achievable output power levels are dependent on the thermal configuration of the target application. A high performance thermal interface material between the package exposed heatslug and the heat sink should be used to achieve high output power levels Stereo into 4Ω speakers from a single 36V supply. PurePath™ HD technology enables traditional AB-Amplifier performance (<0.03% THD) levels while providing the power efficiency of traditional class D amplifiers. Unlike traditional Class-D amplifiers, the distortion curve only increases once the output levels move into clipping. PurePath™ HD technology enables lower idle losses making the device even more efficient. The TAS5613A is a high-performance analog input Class D amplifier with integrated closed loop feedback technology (known as PurePath™ HD). It has the ability to drive up to 150 W.Achievable output power levels are dependent on the thermal configuration of the target application. A high performance thermal interface material between the package exposed heatslug and the heat sink should be used to achieve high output power levels Stereo into 4Ω speakers from a single 36V supply. PurePath™ HD technology enables traditional AB-Amplifier performance (<0.03% THD) levels while providing the power efficiency of traditional class D amplifiers. Unlike traditional Class-D amplifiers, the distortion curve only increases once the output levels move into clipping. PurePath™ HD technology enables lower idle losses making the device even more efficient.
