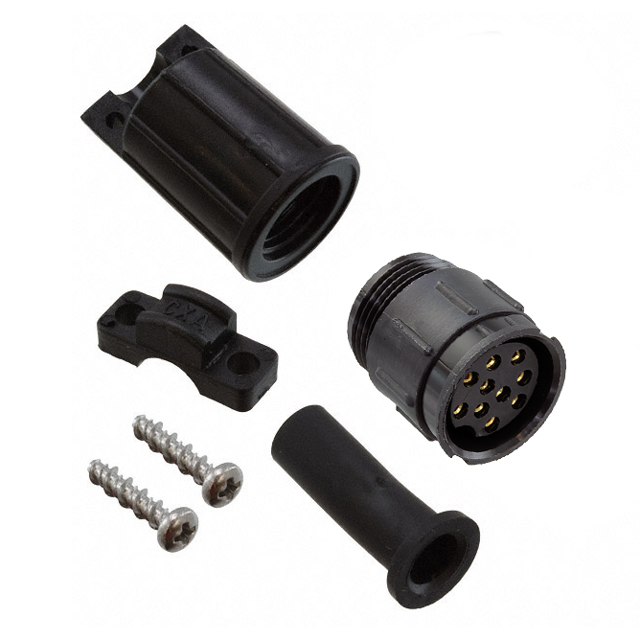

15382-10S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
MAXI-CON CABLE-CABLE #16 SOLDER
| Part | Primary Material | Contact Finish - Mating | Mounting Type | Orientation | Backshell Material, Plating | Fastening Type | Color | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Features | Contact Material | Voltage Rating | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Connector Type | Number of Positions | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Plastic | Gold | Free Hanging (In-Line) | Keyed | Nylon Polyamide (PA) | Bayonet Lock | Black | Unshielded | 115 °C | -40 C | Weathertight | Backshell Cable Clamp | Brass | 600 V | 5.33 mm | 0.25 in | 0.21 in | 6.35 mm | Receptacle Female Sockets | 10 | |
 SWITCHCRAFT/CONXALL | Plastic | Gold | Free Hanging (In-Line) | Keyed | Nylon Polyamide (PA) | Bayonet Lock | Black | Unshielded | 115 °C | -40 C | Weathertight | Backshell Cable Clamp | Brass | 600 V | 7.87 mm | 0.38 in | 0.31 " | Receptacle Female Sockets | 10 | 9.65 mm |
