AOTL666 Series
Manufacturer: Alpha & Omega Semiconductor Inc.
Beta
⌘K

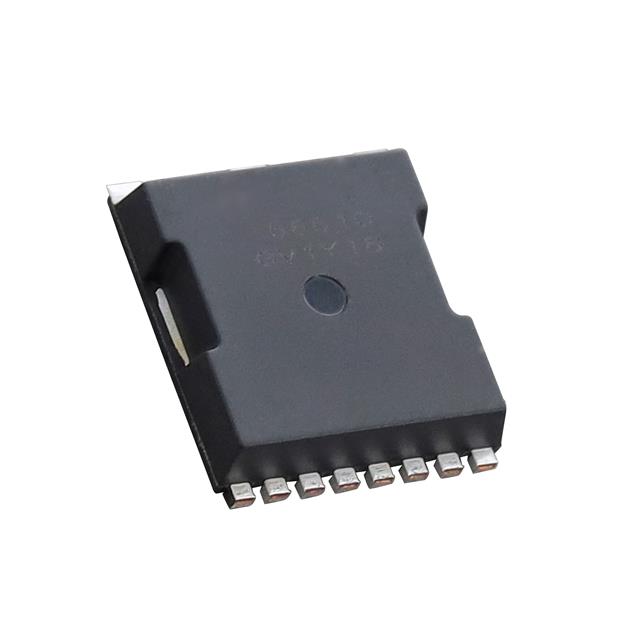

MOSFET N-CH 60V 61A/350A TOLLA
| Part | Vgs (Max) | Power Dissipation (Max) | Package / Case | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Vgs(th) (Max) @ Id | Technology | Input Capacitance (Ciss) (Max) @ Vds | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Gate Charge (Qg) (Max) @ Vgs [Max] | Supplier Device Package | Rds On (Max) @ Id, Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Alpha & Omega Semiconductor Inc. | 20 V | 8.3 W 272 W | 8-PowerSFN | N-Channel | 6 V 10 V | 3.6 V | MOSFET (Metal Oxide) | 7625 pF | 60 V | 61 A 350 A | Surface Mount | 175 °C | -55 °C | 145 nC | TOLLA | 1.2 mOhm |
