CES-271911 Series

Catalog

SPEAKER 8OHM 1.5W TOP PORT 95DB

Part	Power - Rated	Material - Cone	Shape	Efficiency - dBA	Technology	Efficiency - Type	Port Location	Size / Dimension [x]	Size / Dimension [y]	Material - Magnet	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Efficiency - Testing	Type	Termination	Frequency - Self Resonant	Power - Max [Max]	Frequency Range [Min]	Frequency Range [Max]	Impedance	Distortion Rating	Operating Temperature [Min]	Operating Temperature [Max]

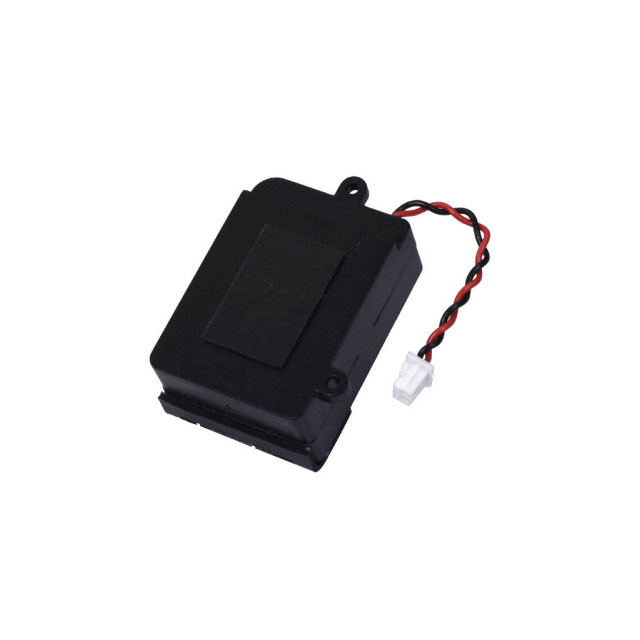

Same Sky (Formerly CUI Devices) CES-271911-158PM	1.5 W	Foam	Rectangular	95 dBA	Magnetic	Sound Pressure Level (SPL)	Top	1.067 in 27.1 mm	0.756 in 19.2 mm	Nd-Fe-B	0.51 in	12.95 mm	1.5 W/100mm	General Purpose Enclosure Included	Wire Leads with Connector	750 Hz	1.7 W	600 Hz	5 kHz	8 Ohms
Same Sky (Formerly CUI Devices) CES-271911-158PM	1.5 W	Foam	Rectangular	95 dBA	Magnetic	Sound Pressure Level (SPL)	Top	1.067 in 27.1 mm	0.756 in 19.2 mm	Nd-Fe-B	0.51 in	12.95 mm	1.5 W/100mm	General Purpose Enclosure Included	Wire Leads with Connector	750 Hz	1.7 W	600 Hz	5 kHz	8 Ohms	10 %	-20 ░C	60 °C
