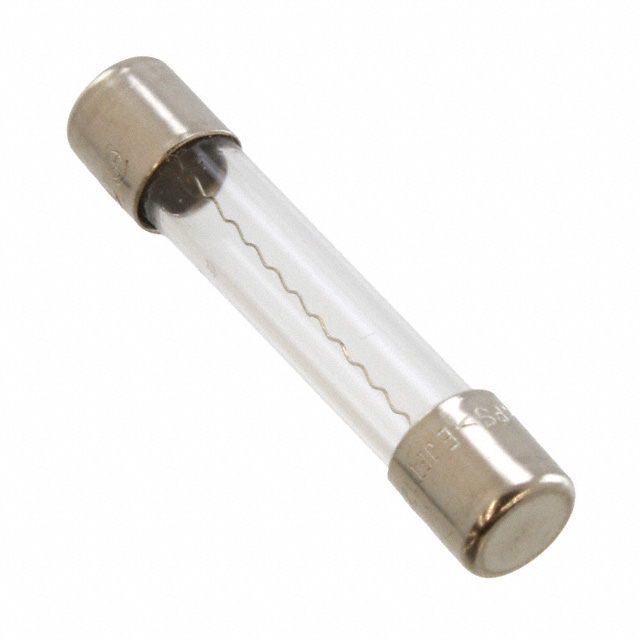

3AG Series

Catalog

FUSE GLASS 7A 250VAC 3AB 3AG

Part	Melting I˛t	DC Cold Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Package / Case [x]	Package / Case	Response Time	Mounting Type	Melting I²t	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Fuse Type	Breaking Capacity @ Rated Voltage	Current Rating (Amps)
Bel Fuse Inc. 3AG 7-R	141	0.012 Ohms	-55 C	125 °C	CE CSA cURus PSE	0.25 in	3AB 3AG	Fast Blow	Requires Holder	141	250 V	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Glass	200 A	7 A
Bel Fuse Inc. 3AG 8-R		0.01 Ohms	-55 C	125 °C	CE CSA cURus PSE	0.25 in	3AB 3AG	Fast Blow	Requires Holder	184	250 V	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Glass	200 A	8 A
Bel Fuse Inc. 3AG 500-R	0.14	1.19 Ohms	-55 C	125 °C	CE CSA cURus	0.25 in	3AB 3AG	Fast Blow	Requires Holder	0.14	250 V	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Glass	200 A	0.5 A
Bel Fuse Inc. 3AG 6-R			-55 C	125 °C	CE CSA cURus PSE	0.25 in	3AB 3AG	Fast Blow	Requires Holder	107	250 V	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Glass	200 A	6 A
