Dynamic 2000 Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

WTB CONN, R/A HEADER, 3POS, 1ROW, 2.5MM ROHS COMPLIANT: YES

...

Part	Applications	Features	Contact Length - Post	Contact Length - Post	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Termination	Style	Contact Finish - Post	Mounting Type	Contact Shape	Shrouding	Insulation Height	Insulation Height	Voltage Rating	Contact Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Color	Contact Material	Insulation Material	Number of Positions Loaded	Number of Positions	Color	Pitch	Pitch	Contact Termination	Number of Rows [custom]	Contact Length - Post	Note	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Row Spacing	Row Spacing	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating
TE Connectivity AMP Connectors 1376135-2	General Purpose Industrial	Board Lock	3.33 mm	0.131 in	Header	Detent Lock	0.38 µm	15 µin	-55 C	105 ░C	UL94 V-0	5 A	Solder	Board to Board Cable	Tin	Right Angle Through Hole	Rectangular	Shrouded - 4 Wall	10.95 mm	0.431 in	250 V	Tab	Gold	2.5 mm	0.098 in	1	Black	Copper Alloy	Glass Filled Polyester Thermoplastic	All
TE Connectivity AMP Connectors 1-1318114-3		Polarizing Key			Plug				-55 C	105 ░C						Panel Mount Snap-In						Male Pin							Glass Filled Polyester Thermoplastic		6	Black	2.5 mm	0.098 in	Crimp	2
TE Connectivity AMP Connectors 2-2336491-3		Solder Retention		2.6 mm	Header	Push-Pull	0.38 µm	15 µin	-55 C	105 ░C	UL94 V-0	18 A	Solder	Board to Cable/Wire	Tin	Right Angle Through Hole	Rectangular	Shrouded - 4 Wall	9.8 mm	0.386 in	300 VAC	Male Pin	Gold	5 mm	0.197 "	1	Black	Copper Alloy	Liquid Crystal Polymer (LCP)	All							0.102 in
TE Connectivity AMP Connectors 1276716-1

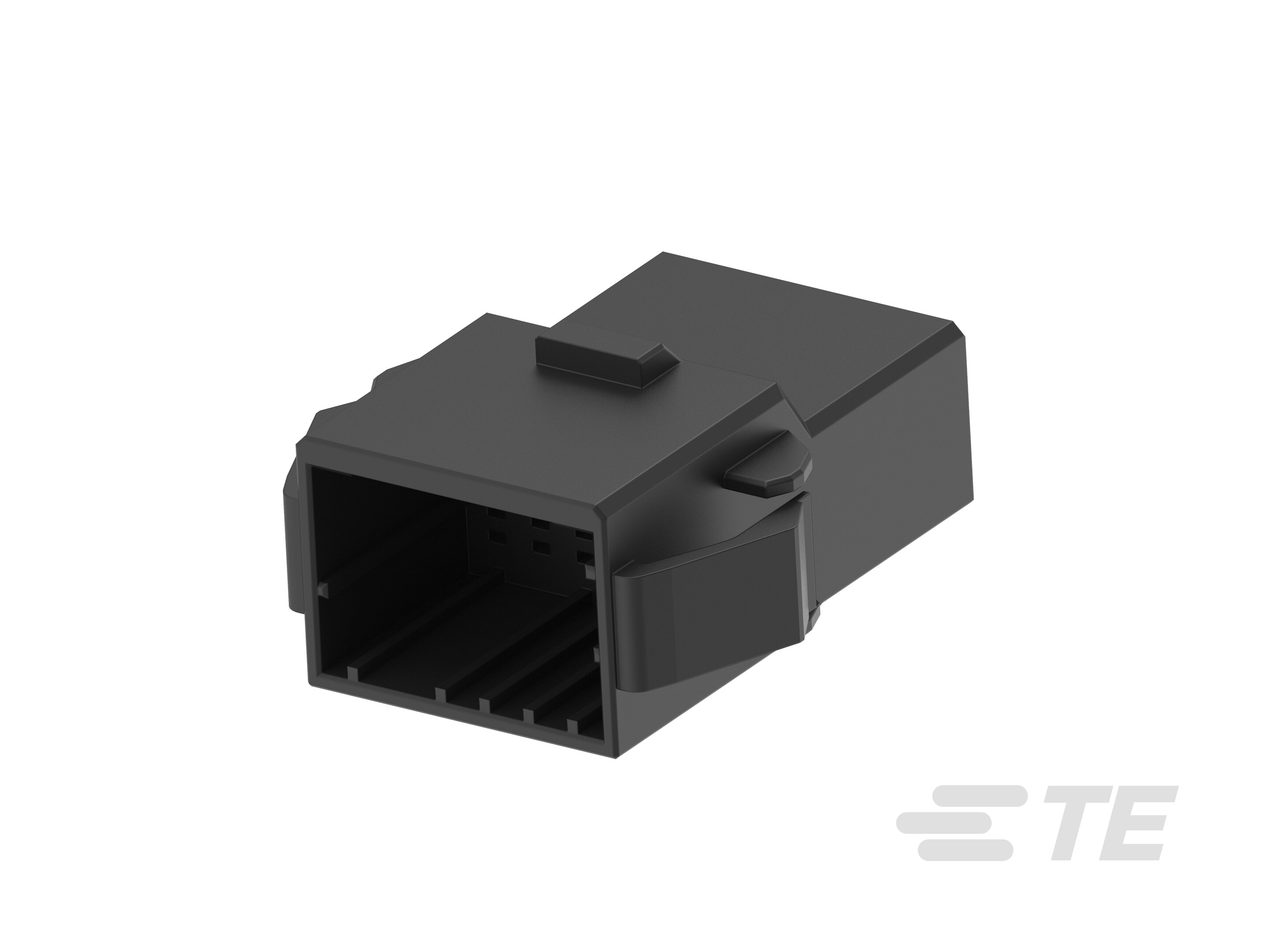

TE Connectivity AMP Connectors 1-1318114-6		Polarizing Key			Plug				-55 C	105 ░C						Panel Mount Snap-In						Male Pin							Glass Filled Polyester Thermoplastic		12	Black	2.5 mm	0.098 in	Crimp	2		Contacts Not Included
TE Connectivity AMP Connectors 1318106-1																																			Crimp				24 AWG	28 AWG	Socket	0.38 µm	15 µin	Gold
TE Connectivity AMP Connectors 1318577-1					Receptacle				-55 C	105 ░C						Panel Mount						Female Socket							Polyester Glass Filled		50	Black	2.5 mm	0.098 in	Crimp	2									0.148 in	3.75 mm
TE Connectivity AMP Connectors 2-1717834-4					Receptacle	Locking Ramp			-55 C	105 ░C						Free Hanging (In-Line)						Female Socket							Polyester Glass Filled		8	Black	2.5 mm	0.098 in	Crimp	2		Contacts Not Included							0.148 in	3.75 mm
TE Connectivity AMP Connectors 9-1318125-2				3.4 mm	Header	Latch Lock	0.38 µm	15 µin	-55 C	105 ░C	UL94 V-0	5 A	Solder	Board to Board Cable		Through Hole	Rectangular	Shrouded - 4 Wall	17.78 mm	0.7 in	250 V	Tab	Gold	2.5 mm	0.098 in		Black	Copper Alloy	Polyester Glass Filled	All	8					2											0.134 "	3.75 mm	0.148 in
TE Connectivity AMP Connectors 1-1318125-2		Board Lock		3.4 mm	Header	Detent Lock	0.38 µm	15 µin	-55 C	105 ░C	UL94 V-0	5 A	Solder	Board to Board Cable	Tin	Through Hole	Rectangular	Shrouded - 4 Wall	17.78 mm	0.7 in	250 V	Tab	Gold	2.5 mm	0.098 in		Black	Copper Alloy	Glass Filled Polyester Thermoplastic	All	8					2											0.134 "	3.75 mm	0.148 in
