6066C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

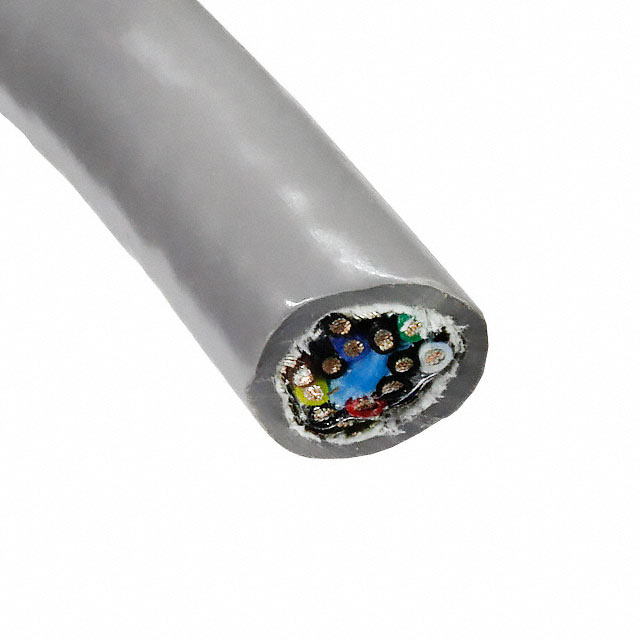

MULTI-PAIR 12COND 18AWG
| Part | Shield Material | Shield Coverage | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Length [x] | Length [x] | Shield Type | Conductor Insulation | Number of Conductors | Ratings | Jacket (Insulation) Material | Cable Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Slate | 0.541 in | 13.74 mm | 0.053 " | 1.346 mm | 300 VDC | 100 ft | 30.5 m | Foil | Poly-Vinyl Chloride (PVC) | 12 | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Multi-Pair | Drain Wire | 80 °C | -20 ░C | 16 | 30 AWG | Copper Tinned | 18 AWG | ||
ALPHA WIRE | Aluminum | 100 % | Slate | 0.541 in | 13.74 mm | 0.053 " | 1.346 mm | 300 VDC | Foil | Poly-Vinyl Chloride (PVC) | 12 | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Multi-Pair | Drain Wire | 80 °C | -20 ░C | 16 | 30 AWG | Copper Tinned | 18 AWG | 152.4 m | 500 ft |
