807-072 Series
Manufacturer: EDAC Inc.
Beta
⌘K

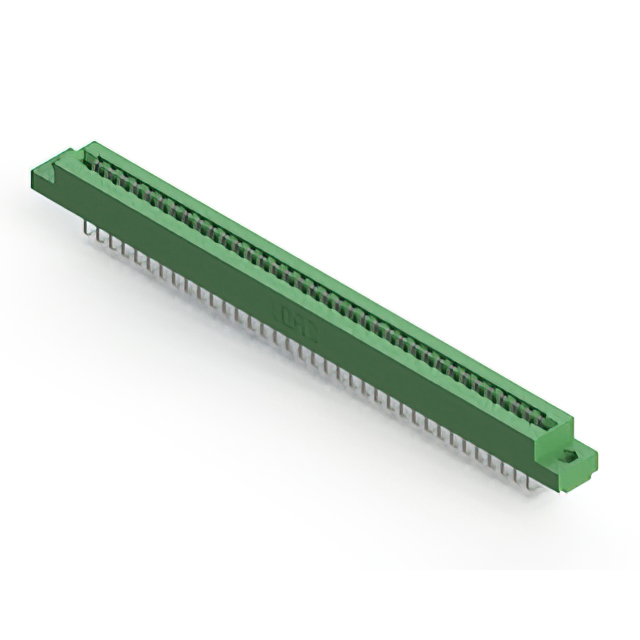

CONN EDGE DUAL FMALE 72POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Number of Rows [custom] | Mounting Type | Color | Contact Finish | Card Type | Number of Positions/Bay/Row | Contact Type | Gender | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Wire Wrap | 125 °C | -40 C | 72 | Copper Alloy | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Through Hole | Green | Gold | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Dual | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder | 125 °C | -40 C | 72 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Board Edge Straddle Mount | Green | Tin | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Dual | Card Extender | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Solder | 125 °C | -40 C | 72 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Right Angle Through Hole | Green | Tin | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Single | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder | 125 °C | -40 C | 72 | Copper Alloy | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Right Angle Through Hole | Green | Gold | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Single | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Solder | 125 °C | -40 C | 72 | Copper Alloy | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Through Hole | Green | Gold | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Dual | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Solder | 125 °C | -40 C | 72 | Copper Alloy | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Through Hole | Green | Gold | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Dual | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Solder | 125 °C | -40 C | 72 | Copper Alloy | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Board Edge Straddle Mount | Green | Gold | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Dual | Card Extender | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Solder | 125 °C | -40 C | 72 | Copper Alloy | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Board Edge Straddle Mount | Green | Gold | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Dual | Card Extender |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | Solder Eyelet(s) | 125 °C | -40 C | 72 | Copper Alloy | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Through Hole | Green | Gold | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Dual | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Solder | 125 °C | -40 C | 72 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 2 | Board Edge Straddle Mount | Green | Tin | Non Specified - Dual Edge | 36 | Semi Bellows | Female | Dual | Card Extender |
