TDA130 Series

Catalog

IC AMP CLASS AB STEREO 80MW 8SO

Part	Package Length	Package Name	Package Width	Features	Voltage - Supply Tolerance (Maximum)	Voltage - Supply Tolerance (Minimum)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Mounting Type	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Maximum Output Power (per Channel)	Load Impedance	Channels	Type	Package / Case
NXP USA Inc. TDA1308AT/N2,112	0.154 in	8-SO 8-SOIC	3.9 mm	Depop Short-Circuit Protection	3.5 V	-1.2 V	2.4 V	7 V	Surface Mount	2-Channel (Stereo) Headphones	85 °C	-40 °C	80 mW	32 Ohm	2	Class AB
NXP USA Inc. TDA1308T/N2,115	0.154 in	8-SO 8-SOIC	3.9 mm	Depop Short-Circuit Protection	3.5 V	-1.5 V	3 V	7 V	Surface Mount	2-Channel (Stereo) Headphones	85 °C	-40 °C	80 mW	32 Ohm	2	Class AB
NXP USA Inc. TDA1308/N2,112	0.3 in	8-DIP	7.62 mm	Depop Short-Circuit Protection	3.5 V	-1.5 V	3 V	7 V	Through Hole	2-Channel (Stereo) Headphones	85 °C	-40 °C	80 mW	32 Ohm	2	Class AB

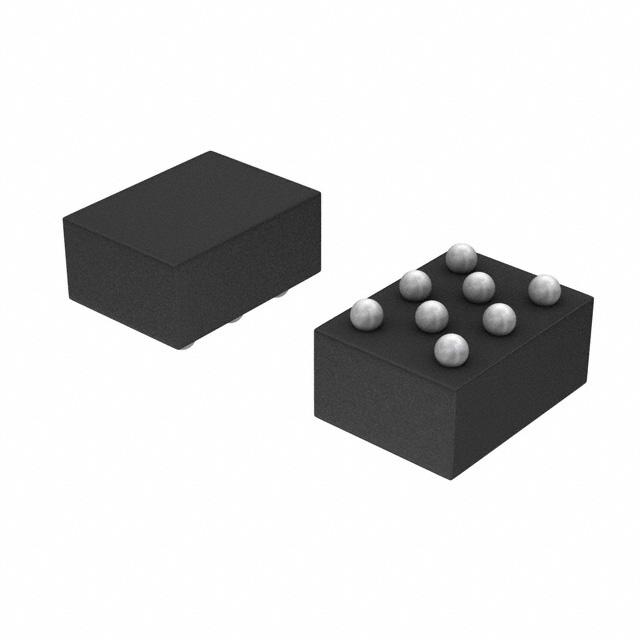

NXP USA Inc. TDA1308AUK,027	0.61 mm	8-WLCSP	0.84 mm	Depop Short-Circuit Protection	3.5 V	-1.2 V	2.4 V	7 V	Surface Mount	2-Channel (Stereo) Headphones	85 °C	-40 °C	80 mW	32 Ohm	2	Class AB	8-XFBGA WLCSP
