53K505 Series
Manufacturer: Rosenberger
Beta
⌘K
N TYPE BULKHEAD JACK
| Part | Dielectric Material | Body Material | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Finish | Number of Ports | Connector Style | Contact Termination | Housing Color | Connector Type | Fastening Type | Center Contact Material | Shield Termination | Impedance | Mounting Feature | Frequency - Max [Max] | Mounting Type | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

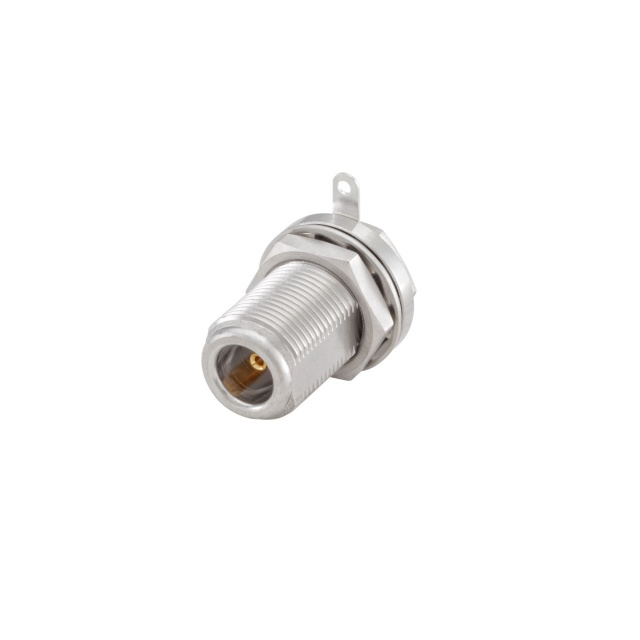

 Rosenberger | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 | -25 °C | 110 °C | 500 V | White Bronze | 1 | N Type | Solder Cup | Silver | Female Socket Jack | Threaded | Beryllium Copper | Solder | 50 Ohms | Bulkhead - Rear Side Nut | 11 GHz | Panel Mount | |

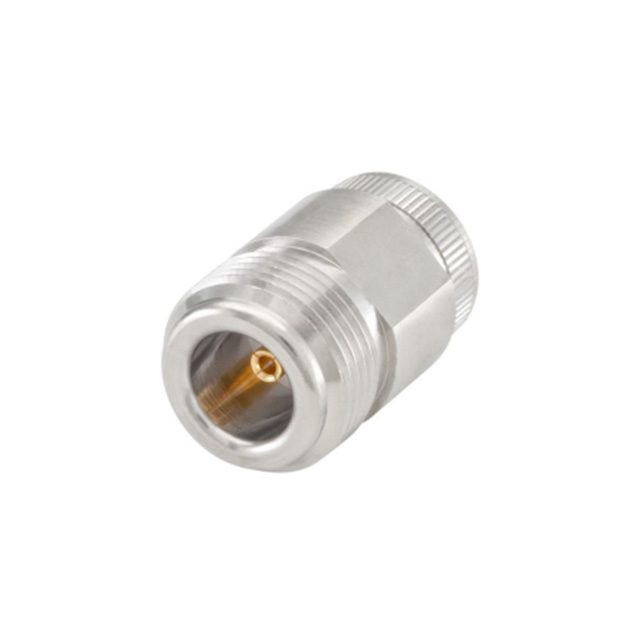

 Rosenberger | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 | -55 C | 155 C | 500 V | White Bronze | 1 | N Type | Solder | Silver | Female Socket Jack | Threaded | Beryllium Copper | Solder | 50 Ohms | Press Fit (Knurled) | 11 GHz | Panel Mount | 0.05 dB |
