746-031 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 31POS 0.125

Part	Termination Rows	Material - Insulation	Read Out	Color	Contact Material	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Number of Positions [custom]	Contact Type	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Gender	Card Type	Contact Finish
EDAC Inc. 746-031-553-501	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold
EDAC Inc. 746-031-540-501	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold

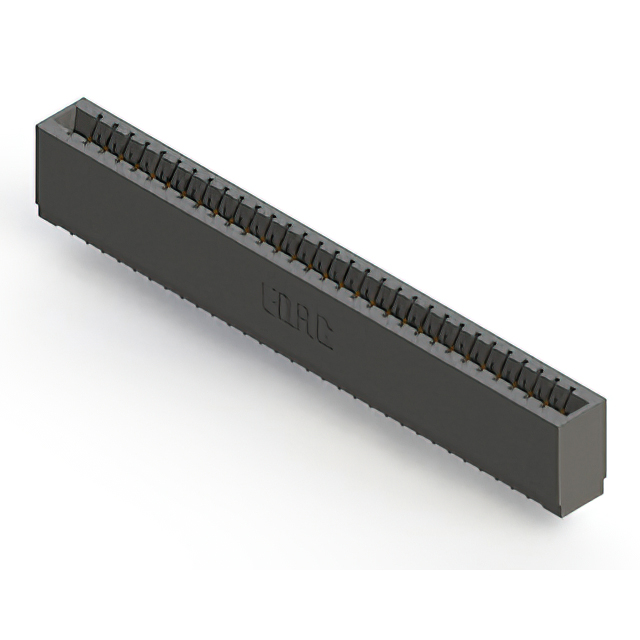

EDAC Inc. 746-031-525-501	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold
EDAC Inc. 746-031-540-506	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold
EDAC Inc. 746-031-525-106	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold
EDAC Inc. 746-031-541-506	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold
EDAC Inc. 746-031-545-501	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold
EDAC Inc. 746-031-553-506	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold
EDAC Inc. 746-031-527-106	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold
EDAC Inc. 746-031-527-501	1	Polyester Thermoplastic	Single	Black	Copper Alloy	3.18 mm	0.125 in	-40 C	105 ░C	31	31	Cantilever	Through Hole	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Non Specified - Single Edge	Gold
