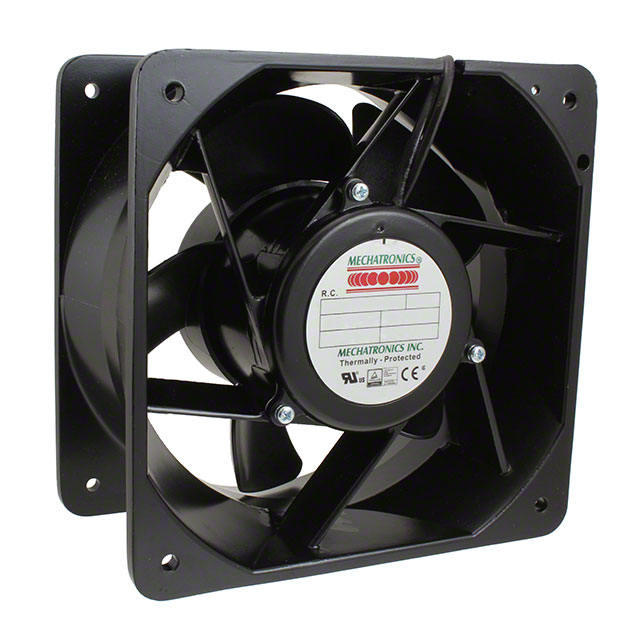

UF18J Series

Catalog

FAN AXIAL 180X90MM 115VAC WIRE

Part	Material - Frame	Current Rating (Amps)	Material - Blade	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Noise	Air Flow	Air Flow	Power (Watts)	Approval Agency	Termination	Width [y]	Static Pressure	Static Pressure	Voltage - Rated	Bearing Type	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Weight	Weight	Features	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]	Termination
Mechatronics Fan Group UF18JC12-BWHR4	Aluminum	0.63 A	Polybutylene Terephthalate (PBT)	Tubeaxial	-40 C	70 °C	70 °C	-40 °C	3400 RPM	59 dB(A)	12.88 m³/min	460 CFM	72 W	CE cUL TUV UL	2 Wire Leads	90 mm	264 Pa	1.06 in H2O	115 VAC	Ball	180 mm	Square	180 mm	4.8 lbs	2.2 kg	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)
Mechatronics Fan Group UF18JC12/23-BWHR	Aluminum		Polybutylene Terephthalate (PBT)	Tubeaxial	-40 C	70 °C	70 °C	-40 °C	3400 RPM	59 dB(A)	12.88 m³/min	460 CFM	72 W	CE cUL TUV UL	4 Wire Leads	90 mm	264 Pa	1.06 in H2O		Ball	180 mm	Square	180 mm	4.8 lbs	2.2 kg	Dual Voltage Permanent Split Capacitor Motor	0.63 A	0.31 A	230 VAC	115 VAC
Mechatronics Fan Group UF18JC12-BTHR4	Aluminum	0.63 A	Polybutylene Terephthalate (PBT)	Tubeaxial	-40 C	70 °C	70 °C	-40 °C	3400 RPM	59 dB(A)	12.88 m³/min	460 CFM	72 W	CE cUL TUV UL		90 mm	264 Pa	1.06 in H2O	115 VAC	Ball	180 mm	Square	180 mm	4.8 lbs	2.2 kg	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)					2
Mechatronics Fan Group UF18JC20-BTHR	Aluminum		Polybutylene Terephthalate (PBT)	Tubeaxial	-40 C	70 °C	70 °C	-40 °C						CE cUL TUV UL		90 mm				Ball	180 mm	Square	180 mm	4.8 lbs	2.2 kg	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)					2
Mechatronics Fan Group UF18JC23-BTHR4	Aluminum	0.31 A	Polybutylene Terephthalate (PBT)	Tubeaxial	-40 C	70 °C	70 °C	-40 °C	3400 RPM	59 dB(A)	12.88 m³/min	460 CFM	72 W	CE cUL TUV UL		90 mm	264 Pa	1.06 in H2O	230 VAC	Ball	180 mm	Square	180 mm	4.8 lbs	2.2 kg	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)					2
Mechatronics Fan Group UF18JC23-BWHR4	Aluminum	0.31 A	Polybutylene Terephthalate (PBT)	Tubeaxial	-40 C	70 °C	70 °C	-40 °C	3400 RPM	59 dB(A)	12.88 m³/min	460 CFM	72 W	CE cUL TUV UL	2 Wire Leads	90 mm	264 Pa	1.06 in H2O	230 VAC	Ball	180 mm	Square	180 mm	4.8 lbs	2.2 kg	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)

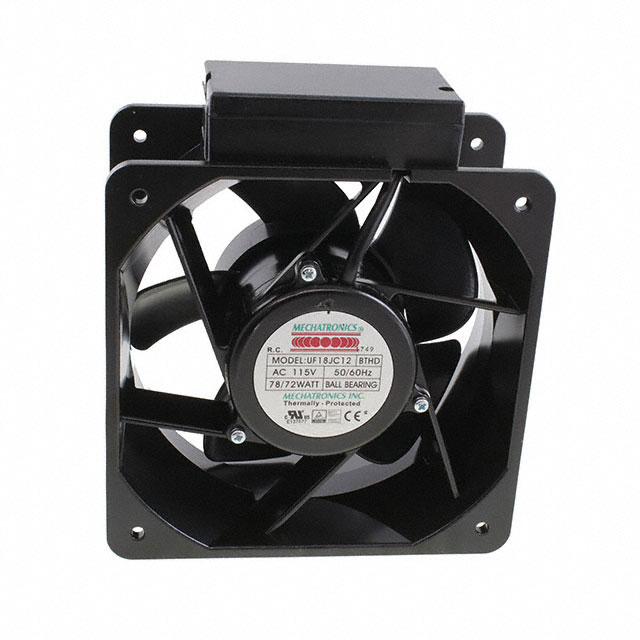

Mechatronics Fan Group UF18JC12-BTHR	Aluminum	0.63 A	Polybutylene Terephthalate (PBT)	Tubeaxial	-40 C	70 °C	70 °C	-40 °C	3400 RPM	59 dB(A)	12.88 m³/min	460 CFM	72 W	CE cUL TUV UL		90 mm	264 Pa	1.06 in H2O	115 VAC	Ball	180 mm	Square	180 mm	4.8 lbs	2.2 kg	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)					2
