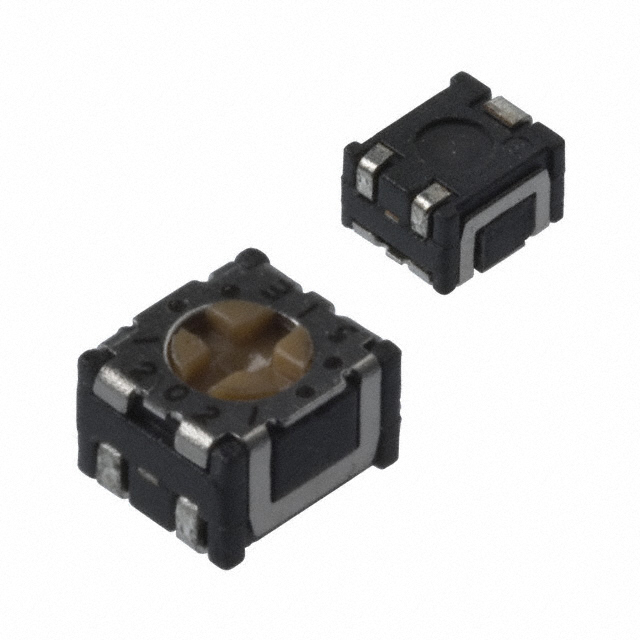

ST-2 Series

Catalog

TRIMMER RESISTORS - SMD 5 KW 2MM SMD SINGLE TURN J-LEAD, TOP ADJ.

Part	Adjustment Type	Number of Turns	Mounting Type	Temperature Coefficient	Resistive Material	Power (Watts)	Power (Watts)	Tolerance	Termination Style	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]
Nidec Components Corporation ST-2TA502	Top Adjustment	1	Surface Mount	150 ppm/°C	Cermet	0.1 W	0.1 W	20 %	J Lead	5 kOhms	2.8 mm	2.4 mm	0.11 in	Rectangular - Face	0.094 in
Nidec Components Corporation ST-2TA203	Top Adjustment	1	Surface Mount	150 ppm/°C	Cermet	0.1 W	0.1 W	20 %	J Lead	20 kOhms	2.8 mm	2.4 mm	0.11 in	Rectangular - Face	0.094 in
Nidec Components Corporation ST-2TA204	Top Adjustment	1	Surface Mount	150 ppm/°C	Cermet	0.1 W	0.1 W	20 %	J Lead	200000 Ohms	2.8 mm	2.4 mm	0.11 in	Rectangular - Face	0.094 in
