1001-7571 Series
Manufacturer: Radiall USA, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

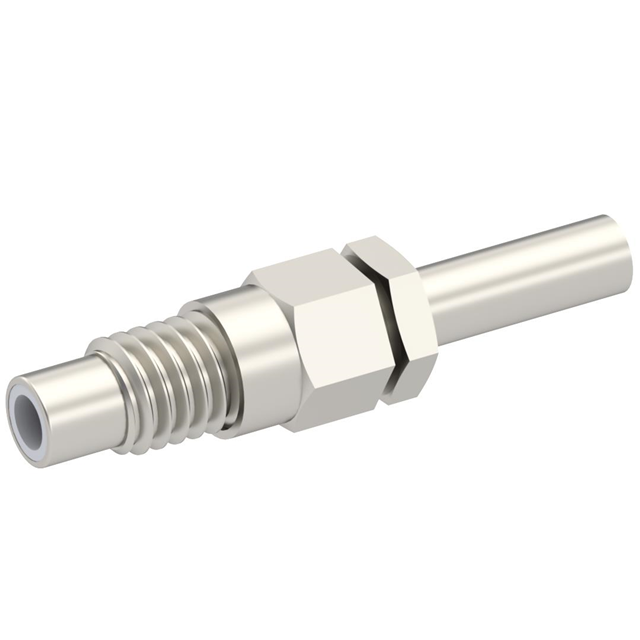

SMC / STRAIGHT JACK MALE CRIMP T
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Body Material | Insertion Loss | Body Finish | Voltage Rating | Dielectric Material | Mating Cycles | Center Contact Plating | Frequency - Max | Connector Type | Number of Ports | Cable Group | Center Contact Material | Mounting Type | Contact Termination | Housing Color | Shield Termination | Connector Style | Fastening Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 °C | 165 °C | Brass | 0.25 dB | Nickel | 250 V | Polytetrafluoroethylene (PTFE) | 500 cycles | Gold | 10 GHz | Jack Male Pin | 1 | 196 RG-178 | Brass | Free Hanging (In-Line) | Crimp | Silver | Crimp | SMC | Threaded | 50 Ohm |
