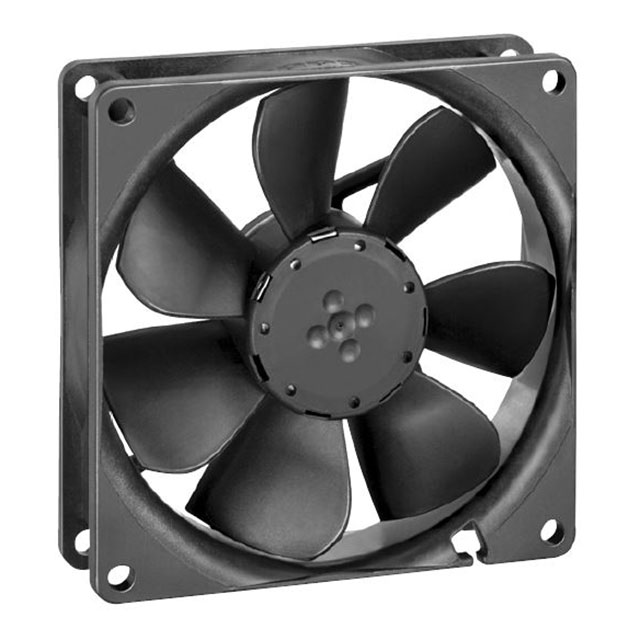

3414 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

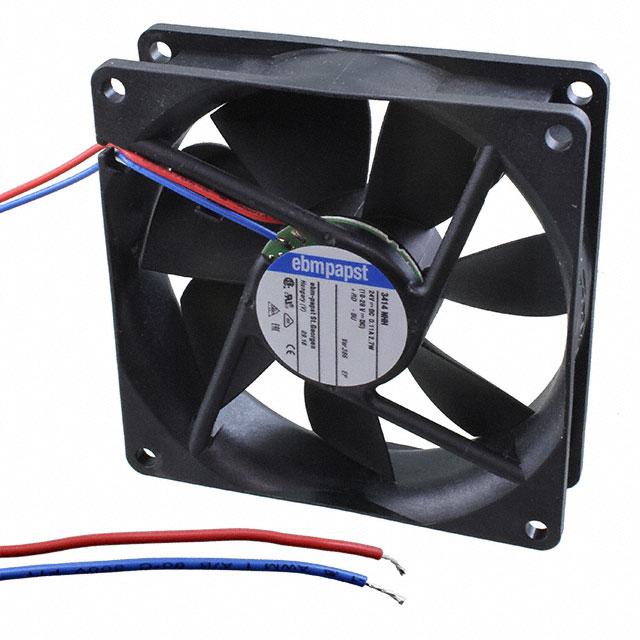

FAN AXIAL 92X25.4MM 24VDC WIRE
| Part | Material - Frame | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Air Flow | Air Flow | Voltage - Rated | RPM | Power (Watts) | Width [y] | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Noise | Weight | Weight | Approval Agency | Termination | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 18 VDC | 26 VDC | 70000 Hrs | 1.55 m³/min | 55.3 CFM | 24 VDC | 3000 RPM | 3 W | 25.4 mm | Ball | -20 ░C | 70 °C | Tubeaxial | 36 dB | 99.79 g | 0.22 lb | CSA UL VDE | 2 Wire Leads | 92 mm | 92 mm |
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 18 VDC | 26 VDC | 70000 Hrs | 1.68 m³/min | 60.1 CFM | 24 VDC | 3250 RPM | 3.1 W | 25.4 mm | Ball | -20 ░C | 70 °C | Tubeaxial | 32 dB | 2 Wire Leads | 92 mm | 92 mm |
