93SX39 Series

Catalog

SWITCH SNAP ACTION SPDT 1A 28V

Part	Switch Function	Actuator Type	Operating Position	Operating Position	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel [custom]	Overtravel [custom]	Operating Force	Mounting Type	Current Rating (Amps)	Termination Style	Voltage Rating - DC	Differential Travel	Differential Travel	Release Force	Pretravel	Pretravel

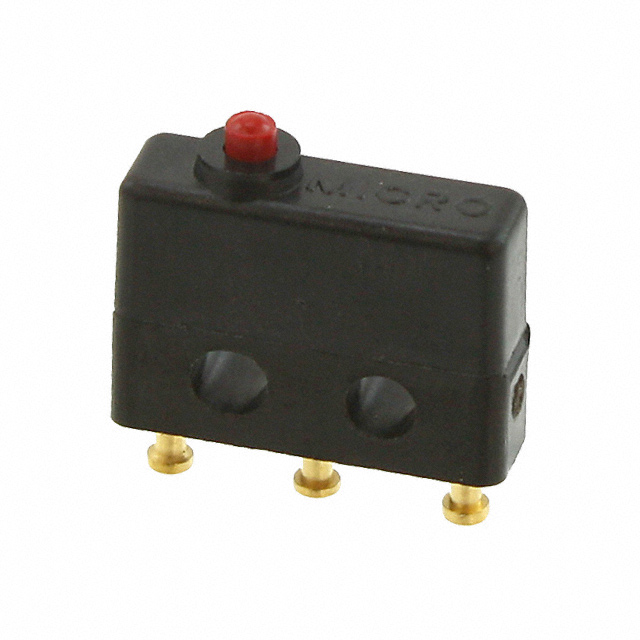

Honeywell Sensing and Productivity Solutions 93SX39-T	On-Mom	Round (Pin Plunger)	8.13 mm	0.32 "	SPDT	-53 °C	85 °C	0.004 in	0.1 mm	141 gf	Chassis Mount	1 A	Solder Turret	28 V	0.005 in	0.13 mm	28 gf	0.02 in	0.5 mm
Honeywell Sensing and Productivity Solutions 93SX39-T2	On-Mom	Round (Pin Plunger)	8.13 mm	0.32 "	SPDT	-53 °C	85 °C	0.004 in	0.1 mm	141 gf	Chassis Mount	1 A	Solder Turret	28 V	0.005 in	0.13 mm	28 gf	0.02 in	0.5 mm
