Power Inductors - SMD 47uH 0.61A 0.844ohms
Power Inductors - SMD 47uH 0.61A 0.844ohms
| Part | Material - Core | Package / Case | Shielding | Type | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Current - Saturation (Isat) | Inductance | Inductance Frequency - Test | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

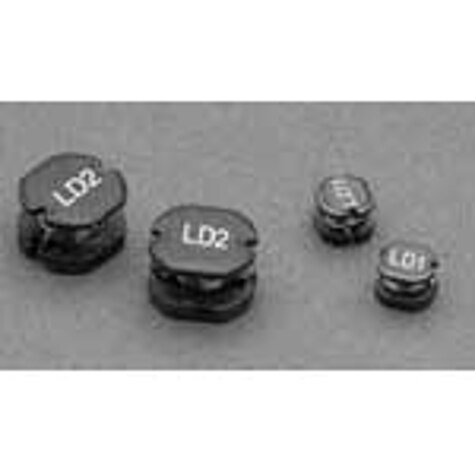

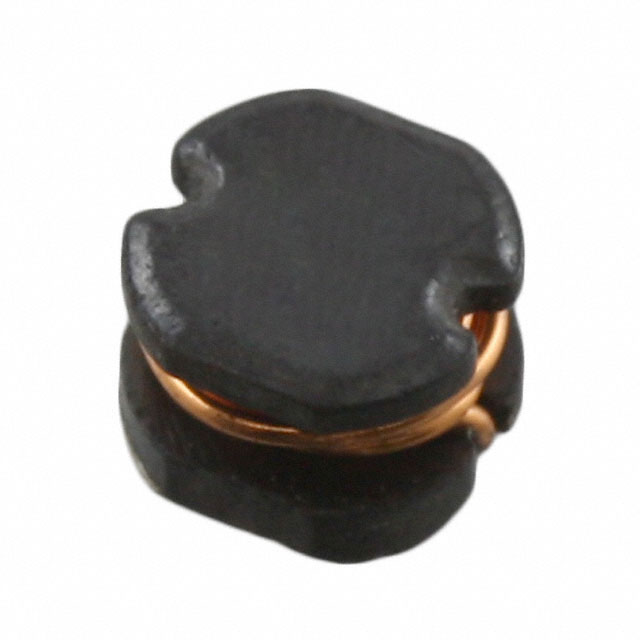

 Eaton - Electronics Division | Ferrite | Nonstandard | Unshielded | Drum Core Wirewound | Surface Mount | 0.157 " | 0.177 in | 4.5 mm | 4 mm | 0.52 A | 0.126 in | 3.2 mm | 20 % | 125 °C | -40 C | 610 mA | 47 µH | 100 kHz | 844 mOhm | |
 Eaton - Electronics Division | Ferrite | Nonstandard | Unshielded | Drum Core Wirewound | Surface Mount | 0.157 " | 0.177 in | 4.5 mm | 4 mm | 780 mA | 0.126 in | 3.2 mm | 20 % | 125 °C | -40 C | 890 mA | 22 µH | 100 kHz | 378 mOhm | |
Eaton - Electronics Division | Ferrite | Nonstandard | Unshielded | Drum Core Wirewound | Surface Mount | 0.276 in | 0.307 " | 7.8 mm | 7 mm | 0.74 A | 0.197 in | 5 mm | 10 % | 125 °C | -40 C | 550 mA | 470 µH | 100 kHz | 1.96 Ohm |
