FS300R12 Series

Manufacturer: INFINEON

Catalog

THE FS300R12KE4 IS A SIXPACK IGBT4 - E4 MODULE IN A ECONOPACK™ + B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 300 A.

Part	Current - Collector (Ic) (Max) [Max]	Package / Case	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Configuration	Input	Vce(on) (Max) @ Vge, Ic	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Mounting Type	IGBT Type	Operating Temperature [Min]	Operating Temperature [Max]
INFINEON FS300R12KE4BOSA1	450 A	Module	1600 W	1200 V	Module	Three Phase Inverter	Standard	2.1 V	18.5 nF	3 mA	Chassis Mount	Trench Field Stop	-40 C	150 °C

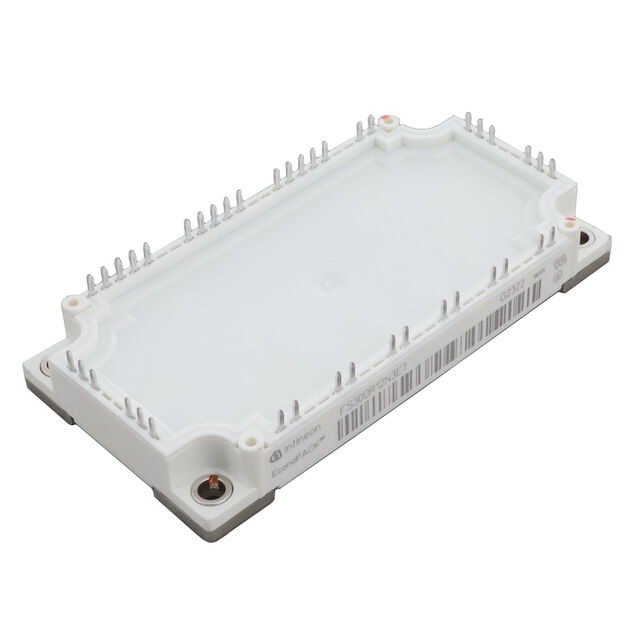

INFINEON FS300R12N3E7BPSA1
INFINEON FS300R12OE4PNOSA1	600 A	Module	20 mW	1200 V	Module	Full Bridge	Standard	2.1 V	18.5 nF	3 mA	Chassis Mount	Trench Field Stop	-40 C	150 °C
INFINEON FS300R12OE4B81BPSA1		Module	20 mW	1200 V	AG-ECONOPP	Three Phase Inverter	Standard	2.1 V	18.5 nF	3 mA	Chassis Mount	Trench Field Stop	-40 °C	150 °C

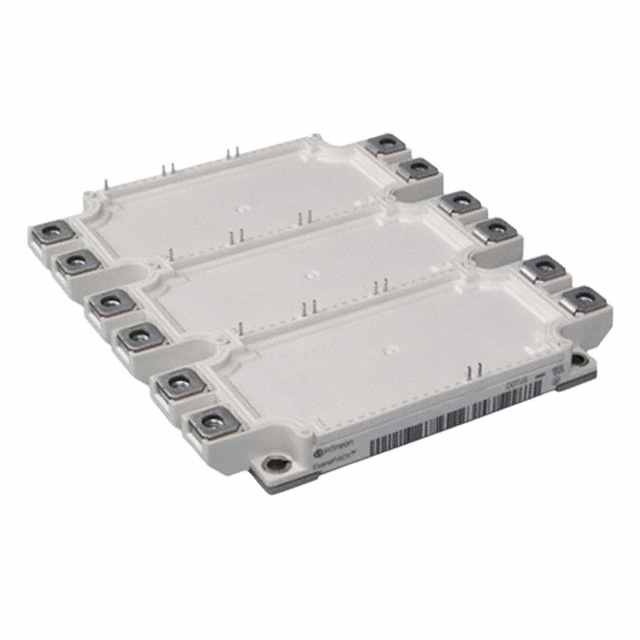

INFINEON FS300R12KE3BOSA1	500 A	Module	1450 W	1200 V	Module	Three Phase Inverter	Standard	2.15 V	21 nF	5 mA	Chassis Mount	Trench Field Stop	-40 C	125 °C
