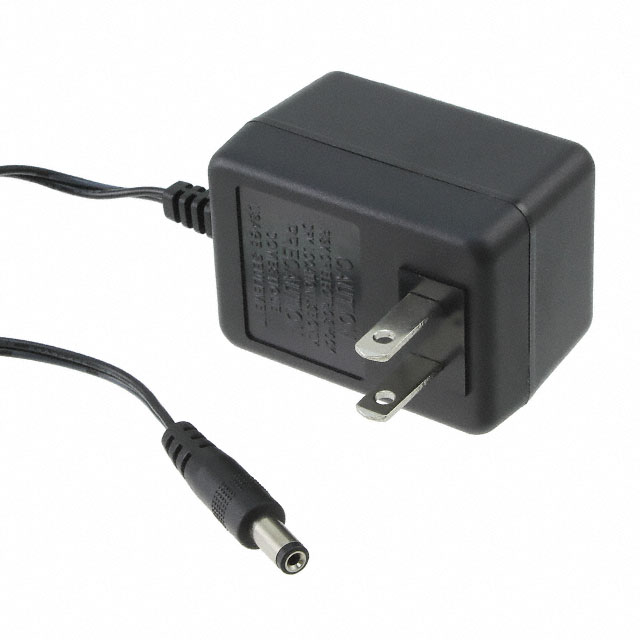

WDU Series

Catalog

WALL MOUNT AC ADAPTERS WALL PLUG-IN PWR SUPPLY, 12VDCA.100MA, CULUS, CENTER POS: ***FOR INDUSTRIAL AND COMMERCIAL USE ONLY***

Part	Power (Watts)	Output Connector [x]	Output Connector [diameter]	Output Connector	Approval Agency	Form	Applications	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Input Connector	Voltage - Output	Current - Output (Max) [Max]	Input Type	Region Utilized
Triad Magnetics WDU12-100	1.2 W	11 mm	2.1 mm 5.5 mm	Barrel Plug	cUL UL	Wall Mount	ITE (Commercial)	1.83 m	72 in	43 mm	39 mm	1.69 "	60 mm	2.36 "	1.54 in	120 VAC	40 °C	-10 °C	Positive Center	NEMA 1-15P	12 V	100 mA	Fixed Blade	North America
Triad Magnetics WDU75-200		11 mm	2.1 mm 5.5 mm	Barrel Plug	cUL UL	Wall Mount	ITE (Commercial)	1.83 m	72 in	43 mm	39 mm	1.69 "	60 mm	2.36 "	1.54 in	120 VAC	40 °C	-10 °C	Positive Center	NEMA 1-15P	7.5 V	200 mA	Fixed Blade	North America
