34.81.7 Series

Catalog

SSR RELAY SPST-NO 6A 1.5-33V

Part	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Input	Output Type	Mounting Type	Termination Style	Approval Agency
Finder Relays, Inc. 34.81.7.012.9024	4-SIP	4-SIP	-20 ░C	70 °C	6 A	1.5 V	33 V	12 VDC	DC	Through Hole	PC Pin	CE cURus EAC UKCA

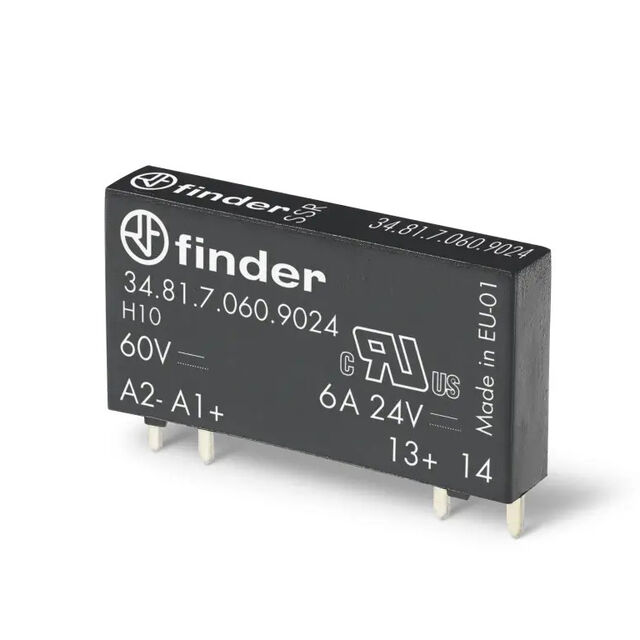

Finder Relays, Inc. 34.81.7.005.9024	4-SIP	4-SIP	-20 ░C	70 °C	6 A	1.5 V	33 V	5 V	DC	Through Hole	PC Pin	CE cURus EAC UKCA
Finder Relays, Inc. 34.81.7.060.8240	4-SIP	4-SIP	-20 ░C	50 °C	2 A	12 V	275 V	60 VDC	AC Zero Cross	Through Hole	PC Pin	CE cURus EAC UKCA
Finder Relays, Inc. 34.81.7.012.8240	4-SIP	4-SIP	-20 ░C	50 °C	2 A	12 V	275 V	12 VDC	AC Zero Cross	Through Hole	PC Pin	CE cURus EAC UKCA
Finder Relays, Inc. 34.81.7.005.8240	4-SIP	4-SIP	-20 ░C	50 °C	2 A	12 V	275 V	5 V	AC Zero Cross	Through Hole	PC Pin	CE cURus EAC UKCA
Finder Relays, Inc. 34.81.7.060.9024	4-SIP	4-SIP	-20 ░C	70 °C	6 A	1.5 V	33 V	60 VDC	DC	Through Hole	PC Pin	CE cURus EAC UKCA
