2842139 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

20P,2MM,BRK HDR,DRVT,2.8,0.38AU,

Part	Contact Type	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Contact Shape	Shrouding	Fastening Type	Mounting Type	Connector Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Termination	Contact Material	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Number of Rows	Current Rating (Amps)	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Material Flammability Rating	Number of Positions
TE Connectivity Raychem Cable Protection 1-2842139-0	Male Pin	125 VAC	0.11 in	2.79 mm	Square	Unshrouded	Push-Pull	Through Hole	Breakaway Header	Tin	15 µin	0.38 µm	Thermoplastic	0.079 in	2 mm	0.079 in	2 mm	All	Solder	Copper Alloy	20	4 mm	0.157 in	Gold	2 çm	78.7 çin	8.3 mm	0.327 in	2	2 A	1.5 mm	0.059 "	125 °C	-40 °C	Black	UL94 V-0

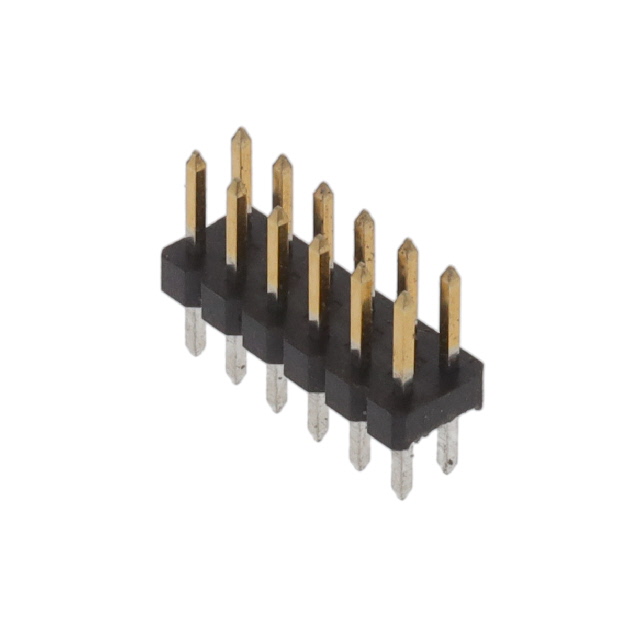

TE Connectivity Raychem Cable Protection 2842139-6	Male Pin	125 VAC	0.11 in	2.79 mm	Square	Unshrouded	Push-Pull	Through Hole	Breakaway Header	Tin	15 µin	0.38 µm	Thermoplastic	0.079 in	2 mm	0.079 in	2 mm	All	Solder	Copper Alloy	12	4 mm	0.157 in	Gold	2 çm	78.7 çin	8.3 mm	0.327 in	2	2 A	1.5 mm	0.059 "	125 °C	-40 °C	Black	UL94 V-0

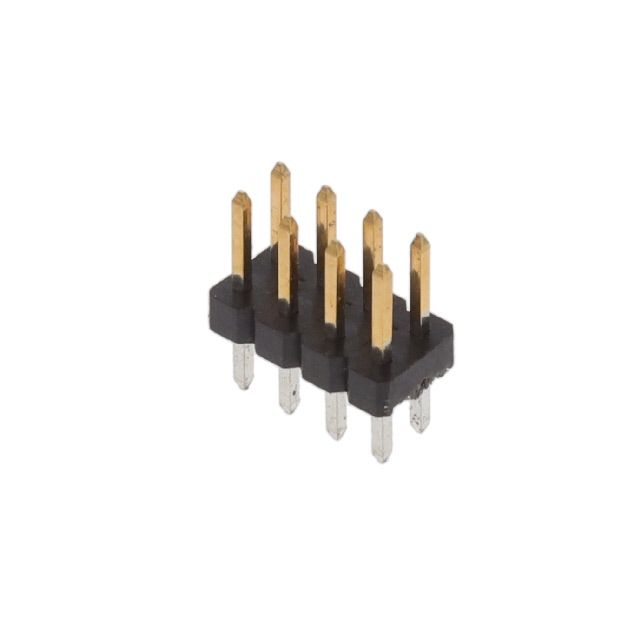

TE Connectivity Raychem Cable Protection 2842139-4	Male Pin	125 VAC	0.11 in	2.79 mm	Square	Unshrouded	Push-Pull	Through Hole	Breakaway Header	Tin	15 µin	0.38 µm	Thermoplastic	0.079 in	2 mm	0.079 in	2 mm	All	Solder	Copper Alloy	8	4 mm	0.157 in	Gold	2 çm	78.7 çin	8.3 mm	0.327 in	2	2 A	1.5 mm	0.059 "	125 °C	-40 °C	Black	UL94 V-0

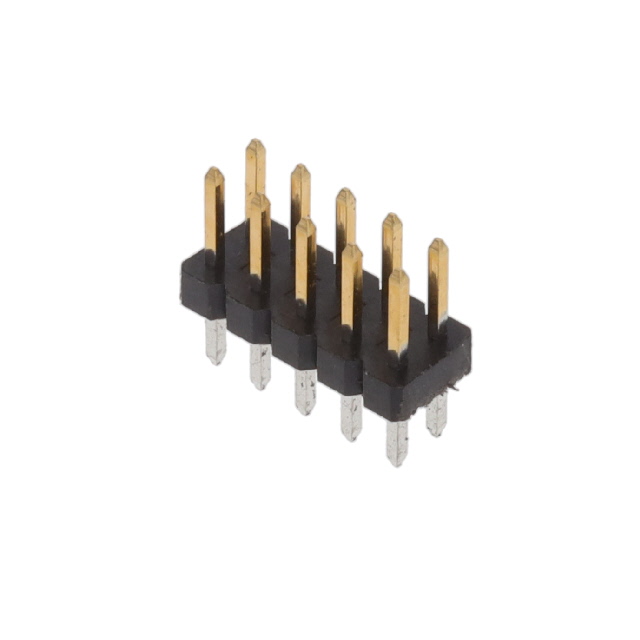

TE Connectivity Raychem Cable Protection 2842139-5	Male Pin	125 VAC	0.11 in	2.79 mm	Square	Unshrouded	Push-Pull	Through Hole	Breakaway Header	Tin	15 µin	0.38 µm	Thermoplastic	0.079 in	2 mm	0.079 in	2 mm	All	Solder	Copper Alloy	10	4 mm	0.157 in	Gold	2 çm	78.7 çin	8.3 mm	0.327 in	2	2 A	1.5 mm	0.059 "	125 °C	-40 °C	Black	UL94 V-0

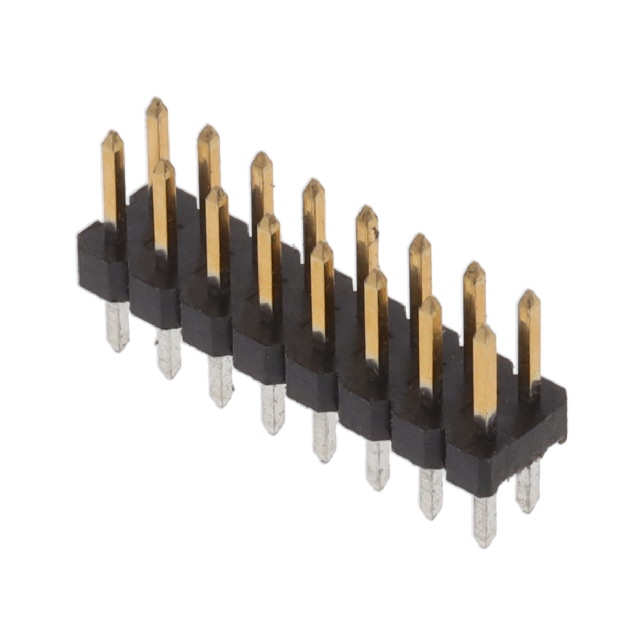

TE Connectivity Raychem Cable Protection 2842139-8	Male Pin	125 VAC	0.11 in	2.79 mm	Square	Unshrouded	Push-Pull	Through Hole	Breakaway Header	Tin	15 µin	0.38 µm	Thermoplastic	0.079 in	2 mm	0.079 in	2 mm	All	Solder	Copper Alloy		4 mm	0.157 in	Gold	2 çm	78.7 çin	8.3 mm	0.327 in	2	2 A	1.5 mm	0.059 "	125 °C	-40 °C	Black	UL94 V-0	16

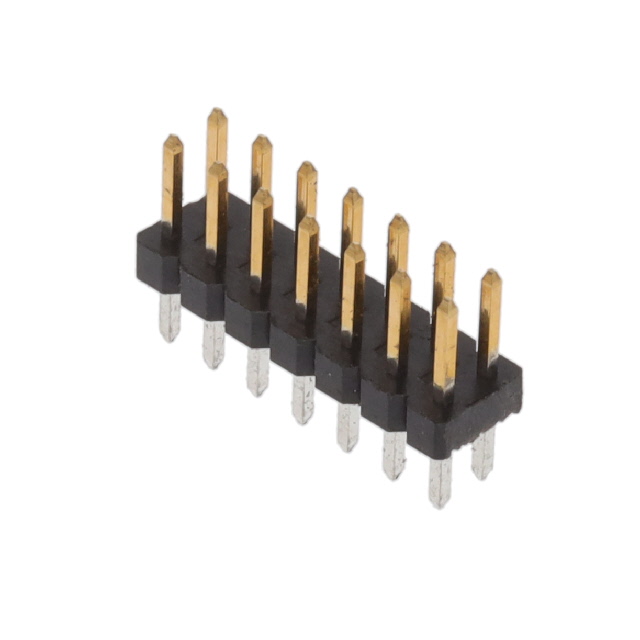

TE Connectivity Raychem Cable Protection 2842139-7	Male Pin	125 VAC	0.11 in	2.79 mm	Square	Unshrouded	Push-Pull	Through Hole	Breakaway Header	Tin	15 µin	0.38 µm	Thermoplastic	0.079 in	2 mm	0.079 in	2 mm	All	Solder	Copper Alloy	14	4 mm	0.157 in	Gold	2 çm	78.7 çin	8.3 mm	0.327 in	2	2 A	1.5 mm	0.059 "	125 °C	-40 °C	Black	UL94 V-0

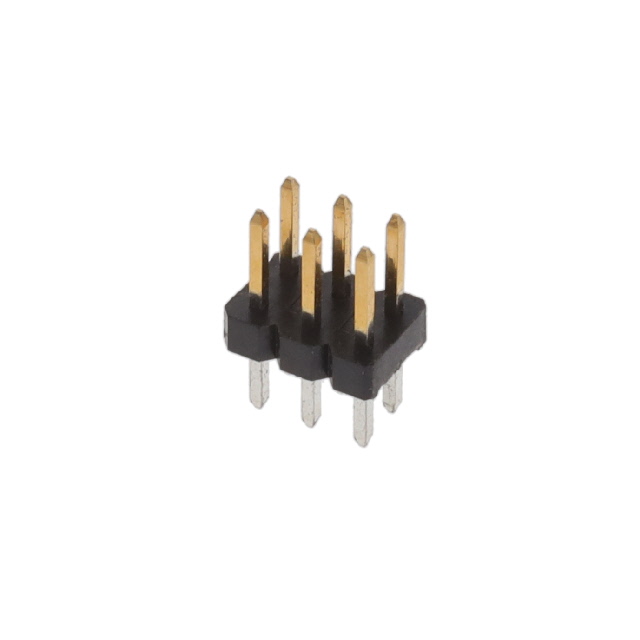

TE Connectivity Raychem Cable Protection 2842139-3	Male Pin	125 VAC	0.11 in	2.79 mm	Square	Unshrouded	Push-Pull	Through Hole	Breakaway Header	Tin	15 µin	0.38 µm	Thermoplastic	0.079 in	2 mm	0.079 in	2 mm	All	Solder	Copper Alloy	6	4 mm	0.157 in	Gold	2 çm	78.7 çin	8.3 mm	0.327 in	2	2 A	1.5 mm	0.059 "	125 °C	-40 °C	Black	UL94 V-0
