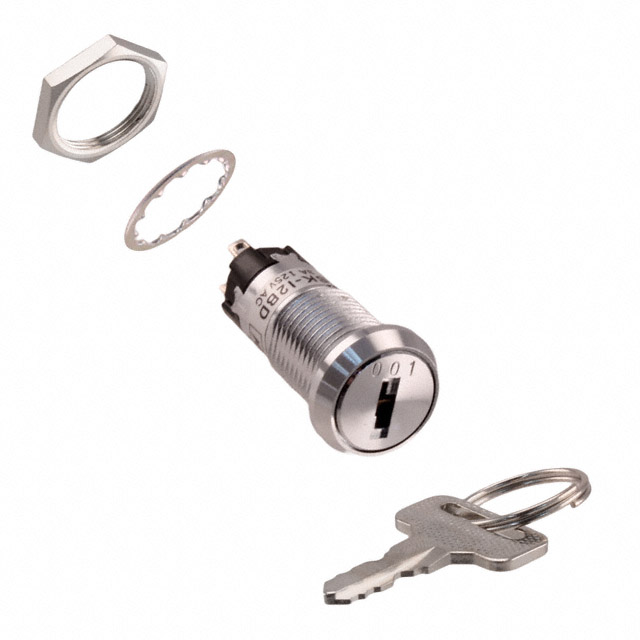

SK12BD Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH KEYLOCK 2POS SPDT 3A 125V
| Part | Mechanical Life | Depth Behind Flange | Electrical Life | Contact Material | Mounting Type | Switch Function | Actuator Type | Contact Timing | Key Removable Positions | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Features | Angle of Throw | Number of Positions | Circuit | Termination Style | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 29.2 mm | 10000 Cycles | Silver (Ag) | Panel Mount | On-On | Flat Key | Non-Shorting (BBM) | 1 | 3 A | -25 °C | 70 °C | 125 V | Epoxy Sealed Terminals | 90 ° | 2 | SPDT | Solder Lug | 12 mm |
NKK Switches | 30000 Steps | 29.2 mm | 10000 Cycles | Silver (Ag) | Panel Mount | On-On | Flat Key | Non-Shorting (BBM) | 1 | 3 A | -25 °C | 70 °C | 125 V | Epoxy Sealed Terminals | 90 ° | 2 | SPDT | Solder Lug | 12 mm |
