MS3122E16 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

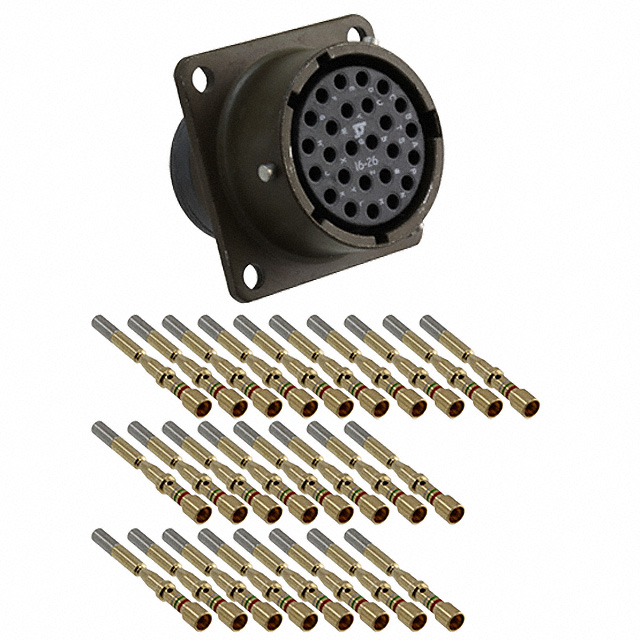

CONN RCPT 26POS BOX MNT W/SCKT
| Part | Number of Positions | Color | Primary Material | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Finish | Voltage Rating | Voltage Rating | Termination | Contact Finish - Mating | Mounting Feature | Current Rating (Amps) | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Connector Type | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | 26 | Olive Drab | Metal | 26 | 16 | Olive Drab Cadmium | 600 VAC | 850 VDC | Crimp | Gold | Flange | 7.5 A | Aluminum Alloy | -55 C | 125 °C | Environment Resistant | Receptacle Female Sockets | Panel Mount | 50 µin | 1.27 µm | N (Normal) | Bayonet Lock |
