EM357 Series

Catalog

RF TXRX MOD CHIP CONN MT

Part	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Antenna Type	Current - Transmitting [Max]	Current - Transmitting [Min]	Power - Output	Data Rate	Sensitivity	RF Family/Standard	Serial Interfaces	Current - Receiving	Modulation	Protocol	Mounting Type	Package / Case	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Type	Current - Receiving [Max]	Current - Receiving [Min]	GPIO	Data Rate (Max)	Supplied Contents	For Use With/Related Products	Contents

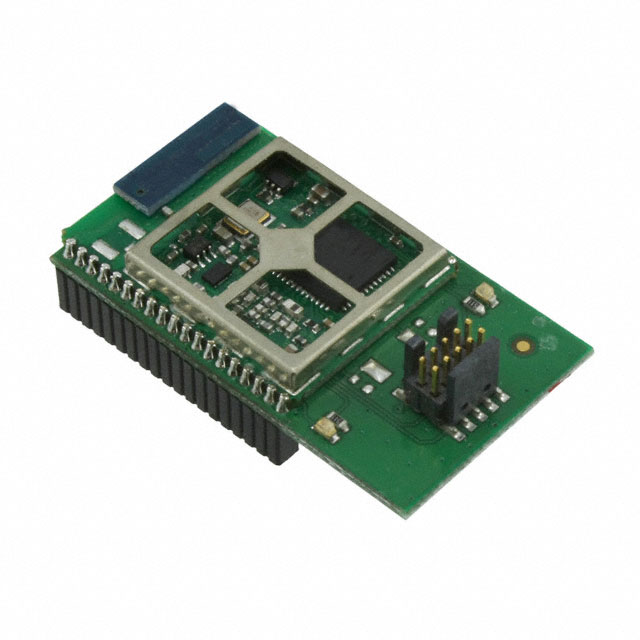

SILICON LABS EM357-MOD-LR-ANT-T	2.4 GHz	85 °C	-40 C	12 kB 192 kB	Chip Integrated	43.5 mA	22.5 mA	8 dBm	5 MBd	-102 dBm	802.15.4	I2C JTAG SPI UART	26 mA	O-QPSK	Zigbee®	Connector Mount	Module	EM357	3.6 V	2.1 V
SILICON LABS EM357-IRT	2.4 GHz	85 °C	-40 C	12 kB 192 kB		43.5 mA	21.5 mA	8 dBm		-102 dBm	802.15.4	I2C JTAG SPI UART		O-QPSK	Zigbee®	Surface Mount	48-VFQFN Exposed Pad		3.6 V	2.1 V	48-QFN (7x7)	TxRx + MCU	28.5 mA	22 mA	24
SILICON LABS EM357-ZRTR	2.4 GHz	85 °C	-40 C	12 kB 192 kB		43.5 mA	21.5 mA	8 dBm		-102 dBm	802.15.4	I2C JTAG SPI UART		O-QPSK	Zigbee®	Surface Mount	48-VFQFN Exposed Pad		3.6 V	2.1 V	48-QFN (7x7)	TxRx + MCU	28.5 mA	22 mA	24	5 Mbps
SILICON LABS EM357-RTB	2.4 GHz	85 °C	-40 C	12 kB 192 kB		43.5 mA	21.5 mA	8 dBm		-102 dBm	802.15.4	I2C JTAG SPI UART		O-QPSK	Zigbee®	Surface Mount	48-VFQFN Exposed Pad		3.6 V	2.1 V	48-QFN (7x7)	TxRx + MCU	28.5 mA	22 mA	24	5 Mbps

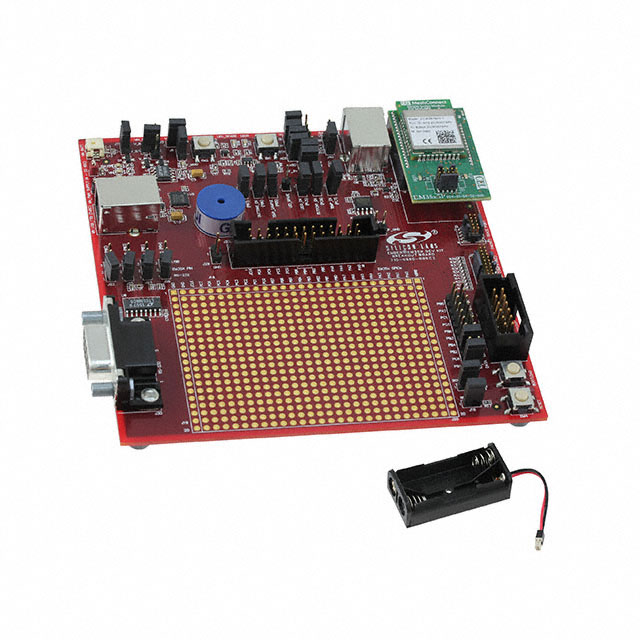

SILICON LABS EM357-STACK	2.4 GHz																	EM357				Transceiver; 802.15.4 (Zigbee®)					Board(s)	EM357	Board(s)

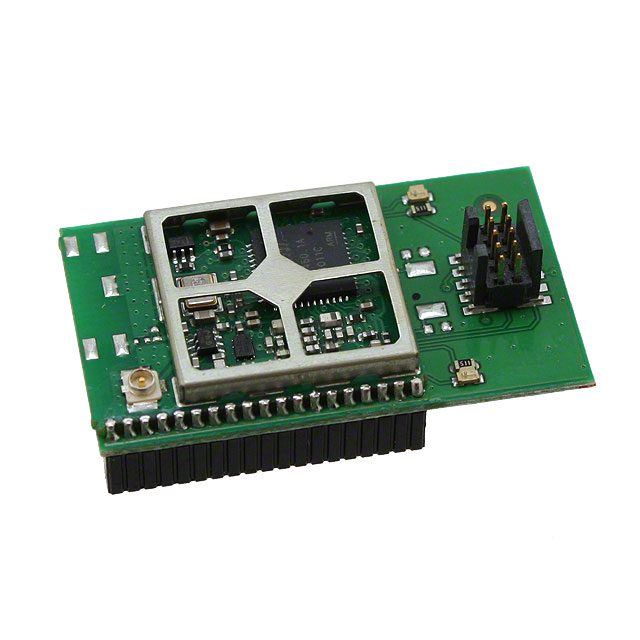

SILICON LABS EM357-MOD-LR-RF-TK	2.4 GHz	85 °C	-40 C	12 kB 192 kB	Antenna Not Included	43.5 mA	22.5 mA	8 dBm	5 MBd	-102 dBm	802.15.4	I2C JTAG SPI UART	26 mA	O-QPSK	Zigbee®	Connector Mount	Module	EM357	3.6 V	2.1 V
