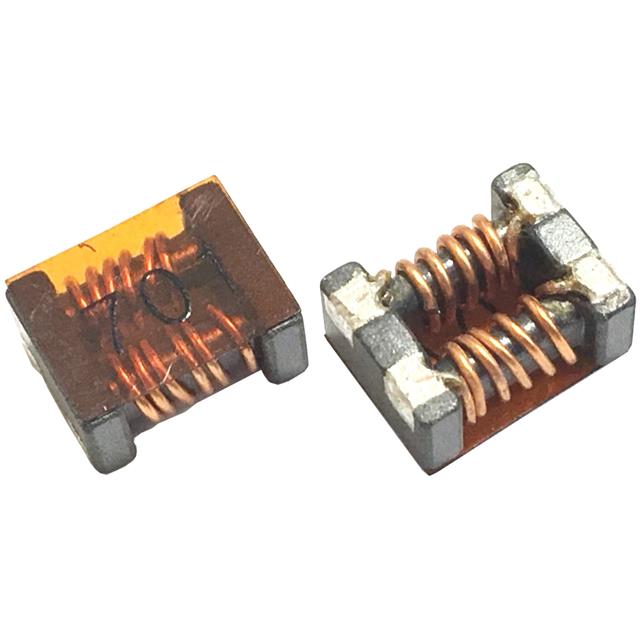

BPPM Series

Catalog

COMMON MODE CHOKES / FILTERS CHILISIN POWER - COMMON MODE CHOKE (CMC) FOR POWER LINE NOISE COUNTERMEASURE

Part	Height (Max) [z]	Height (Max) [z]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Impedance @ Frequency	Filter Type	Current Rating (Max) [Max]	Size / Dimension [y]	Height (Max) [Max] [z]	Height (Max) [Max] [z]
Pulse Electronics BPPM00070638701X00	0.15 in	3.8 mm	2	15 mOhm	125 VDC	125 °C	-40 C	Surface Mount	Horizontal 4 PC Pad	0.276 "	6 mm	0.236 "	7 mm	700 Ohms	Signal Line	4 A
Pulse Electronics BPPM00090748701X00			2	10 mOhm	80 V	125 °C	-40 C	Surface Mount	Horizontal 4 PC Pad	0.354 in		0.276 in	9 mm	700 Ohms	Signal Line	5 A	7 mm	4.8 mm	0.189 in
Pulse Electronics BPPM00151360701X00	0.236 in	6 mm	2	7 mOhm	80 V	125 °C	-40 C	Surface Mount	Horizontal 4 PC Pad	0.591 in	13 mm	0.512 "	15 mm	700 Ohms	Signal Line	10 A
Pulse Electronics BPPM00090748222X00			2	60 mOhm	80 V	125 °C	-40 C	Surface Mount	Horizontal 4 PC Pad	0.354 in		0.276 in	9 mm	2200 Ohms	Signal Line	2.5 A	7 mm	4.8 mm	0.189 in
