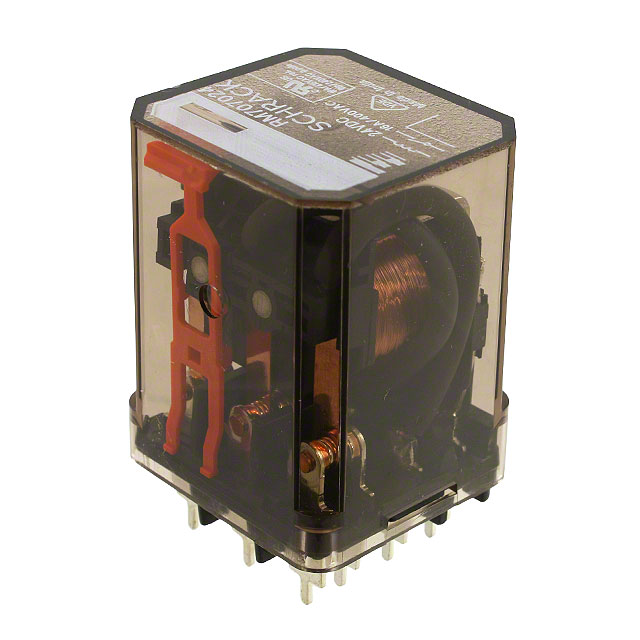

RM7070 Series

Catalog

RELAY GEN PURPOSE 3PDT 16A 60V

Part	Coil Resistance	Contact Material	Coil Type	Coil Current	Load - Max Switching [Max]	Coil Voltage	Termination Style	Must Operate Voltage	Must Release Voltage	Operate Time	Approval Agency	Mounting Type	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Release Time	Contact Form	Features	Contact Rating (Current)
TE Connectivity AMP Connectors RM707060	2.2 kOhms	Silver Cadmium Oxide (AgCdO)	Non Latching	26.7 mA	7040 VA	60 VDC	PC Pin	45 VDC	6 VDC	15 ms	cURus VDE	Through Hole	General Purpose	60 °C	-45 °C	440 VAC	10 ms	3PDT (3 Form C)	Mechanical Indicator	16 A
TE Connectivity AMP Connectors RM707012	86 Ohms	Silver Cadmium Oxide (AgCdO)	Non Latching	140 mA	7040 VA	12 VDC	PC Pin	9 VDC	1.2 VDC	15 ms	cURus VDE	Through Hole	General Purpose	60 °C	-45 °C	440 VAC	10 ms	3PDT (3 Form C)	Mechanical Indicator	16 A
TE Connectivity AMP Connectors RM707024	345 Ohms	Silver Cadmium Oxide (AgCdO)	Non Latching	70.8 mA	7040 VA	24 VDC	PC Pin	18 VDC	2.4 VDC	15 ms	cURus VDE	Through Hole	General Purpose	60 °C	-45 °C	440 VAC	10 ms	3PDT (3 Form C)	Mechanical Indicator	16 A
