DPP240 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 240 W, 48 VDC, 5 A
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Input Type | Voltage - Output 1 | Features | Approval Agency | Power (Watts) | Applications | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Current - Output (Max) | Efficiency | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

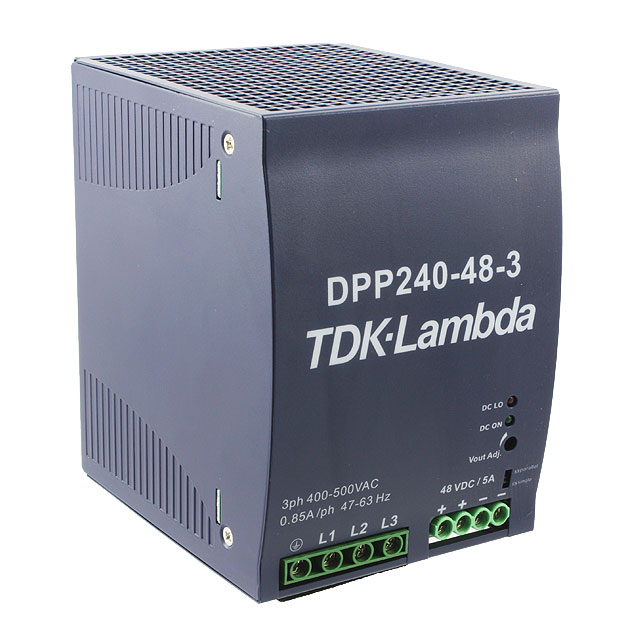

 TDK Corporation | 4.88 in | 124 mm | 88.9 mm | 3.5 " | 4.68 " | 118.9 mm | 1 | -40 °C | 71 °C | 3000 V | AC | 48 V | Adjustable Output Load Sharing | CE | 240 Watts | ITE (Commercial) | 340 VAC | 575 VAC | 5 A | 91 % | |
 TDK Corporation | 4.92 in | 125 mm | 83 mm | 3.27 in | 4.57 " | 116 mm | 1 | -40 °C | 71 °C | 3000 V | AC | 24 V | Adjustable Output Load Sharing | CE | 240 Watts | ITE (Commercial) | 85 VAC 176 VAC | 132 VAC 264 VAC | 89 % | 10 A | |

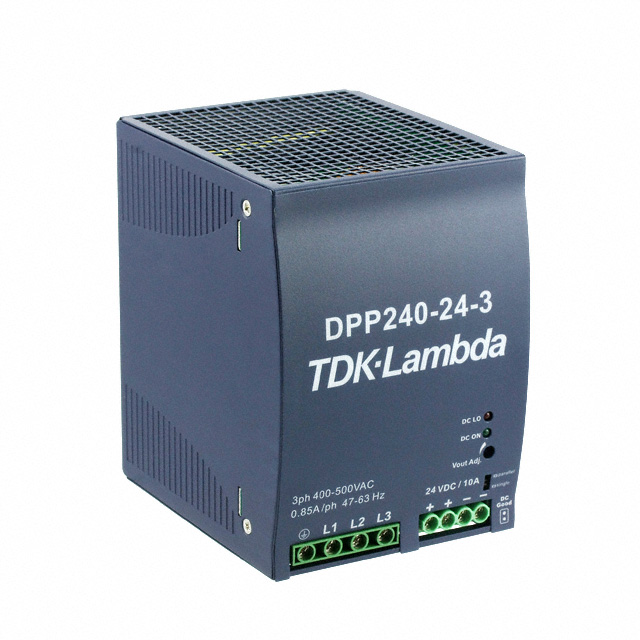

 TDK Corporation | 4.88 in | 124 mm | 88.9 mm | 3.5 " | 4.68 " | 118.9 mm | 1 | -40 °C | 71 °C | 3000 V | AC | 24 V | Adjustable Output Load Sharing | CE | 240 Watts | ITE (Commercial) | 340 VAC | 575 VAC | 90 % | 10 A |
