EB3-02 Series
Manufacturer: Adam Tech
Beta
⌘K

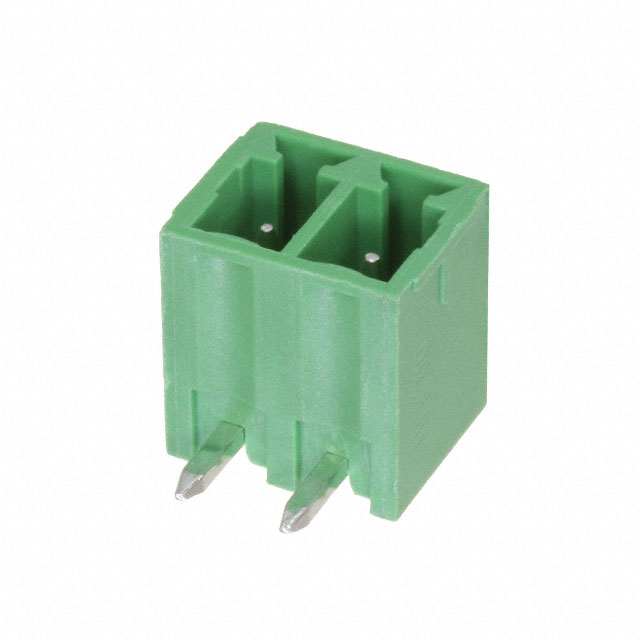

EURO BLOCK 2P
| Part | Housing Material | Material Flammability Rating | Contact Material | Contact Tail Length | Contact Tail Length | Insulation Height | Insulation Height | Mounting Type | Voltage - UL | Current - UL | Type | Contact Mating Finish | Termination Style | Positions Per Level | Color | Number of Levels | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Header Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Thermoplastic | UL94 V-0 | Copper Alloy | 0.138 in | 3.5 mm | 0.283 in | 7.19 mm | Through Hole | 300 V | 10 A | Header Male Pins Shrouded (4 Side) | Tin | Solder | 2 | Green | 1 | 2 | 115 °C | -40 C | 3.81 mm | 0.15 in | 90° Right Angle |
