1619AM Series
Manufacturer: Belden Inc.
Beta
⌘K

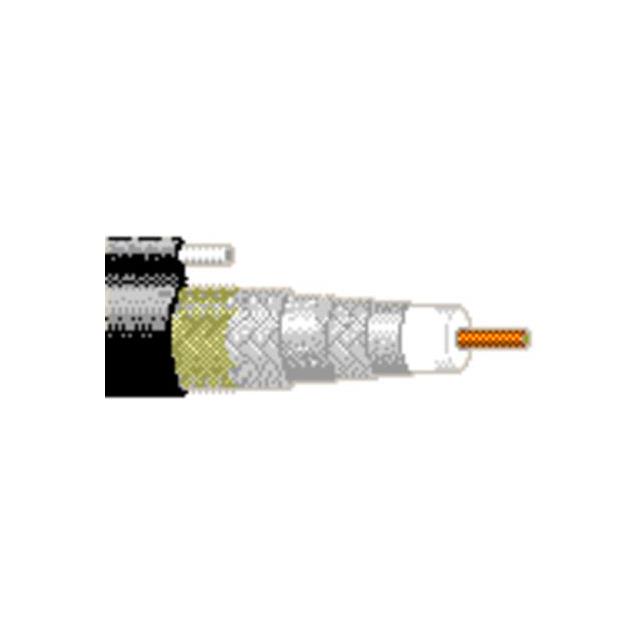

COAX 75 OHM RG11 14AWG MSGR
| Part | VoP, Velocity of Propagation | Conductor Material | Dielectric Material | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Wire Gauge | Conductor Strand | Jacket Color | Length [x] | Length [x] | Jacket (Insulation) Material | Impedance | Shield Type | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 83 | Copper Coated Steel | Foam Polyethylene (FPE) | Aluminum | 40 % 60 % 100 % | 80 °C | -40 C | 0.28 in | 7.11 mm | 14.5 AWG | Solid | Black | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 75 Ohms | Braid Foil | Coaxial | 0.072 in | 1.83 mm | RG-11 |
