9001-1023 Series

Catalog

SMA / STRAIGHT PLUG MALE CRIMP T

Part	Center Contact Plating	Body Material	Body Finish	Mating Cycles	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Fastening Type	Center Contact Material	Connector Type	Number of Ports	Cable Group	Mounting Type	Frequency - Max [Max]	Impedance	Shield Termination	Connector Style	Voltage Rating	Cable Group

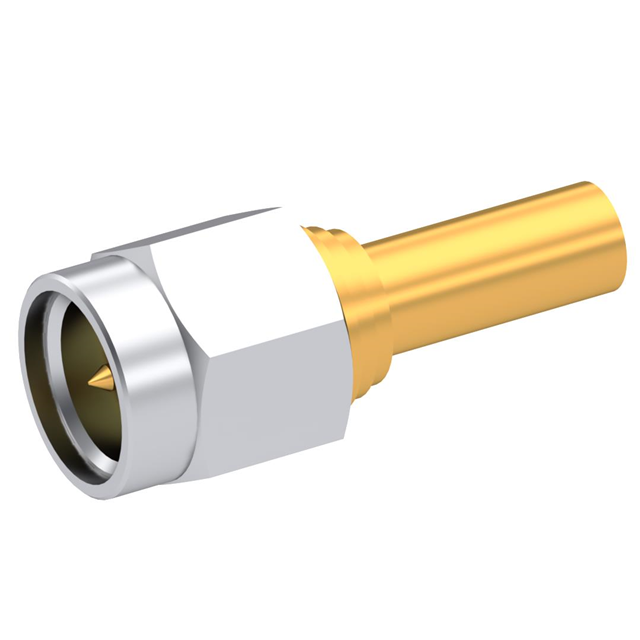

Radiall USA, Inc. 9001-1023-005	Gold	Stainless Steel	Gold	500	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Crimp	Gold	Threaded	Beryllium Copper	Plug Male Pin	1	RD-178 196 Double Braid	Free Hanging (In-Line)	12.4 GHz	50 Ohms	Crimp	SMA

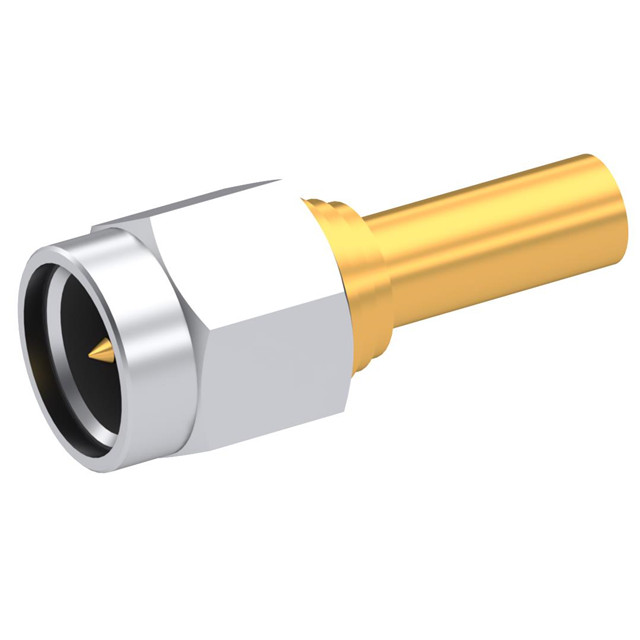

Radiall USA, Inc. 9001-1023-003	Gold	Stainless Steel	Gold	500	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Crimp	Gold	Threaded	Beryllium Copper	Plug Male Pin	1	RG-174	Free Hanging (In-Line)	18 GHz	50 Ohms	Crimp	SMA	250 V	316

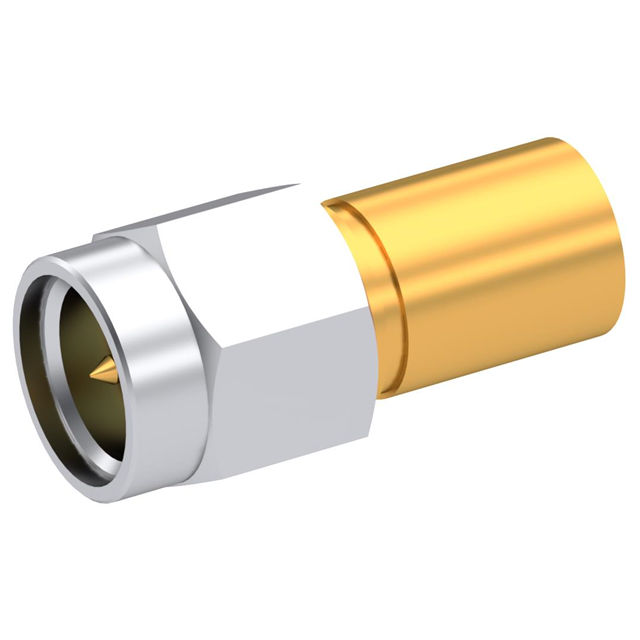

Radiall USA, Inc. 9001-1023-001	Gold	Stainless Steel	Gold	500	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Solder	Gold	Threaded	Beryllium Copper	Plug Male Pin	1	142 223 RG-55	Free Hanging (In-Line)	12.4 GHz	50 Ohms	Crimp	SMA	335 V

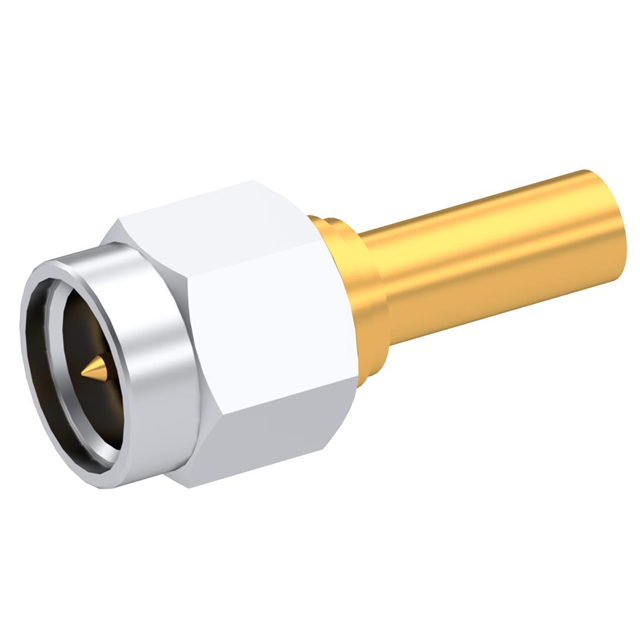

Radiall USA, Inc. 9001-1023-002	Gold	Stainless Steel	Gold	500	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Crimp	Gold	Threaded	Beryllium Copper	Plug Male Pin	1	RG-178	Free Hanging (In-Line)	18 GHz	50 Ohms	Crimp	SMA		196
Radiall USA, Inc. 9001-1023-006	Gold	Stainless Steel	Gold	500	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Crimp	Gold	Threaded	Beryllium Copper	Plug Male Pin	1	RG-58	Free Hanging (In-Line)	18 GHz	50 Ohms	Crimp	SMA		141

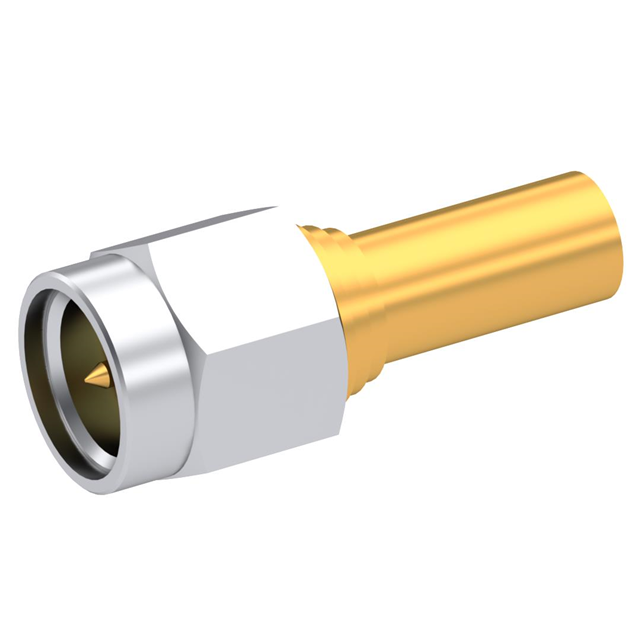

Radiall USA, Inc. 9001-1023-019	Gold	Stainless Steel	Gold	500	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Crimp	Gold	Threaded	Beryllium Copper	Plug Male Pin	1	RD-316 RG-316DS	Free Hanging (In-Line)	18 GHz	50 Ohms	Crimp	SMA
