PTT Series
Manufacturer: Phoenix Contact
Beta
⌘K

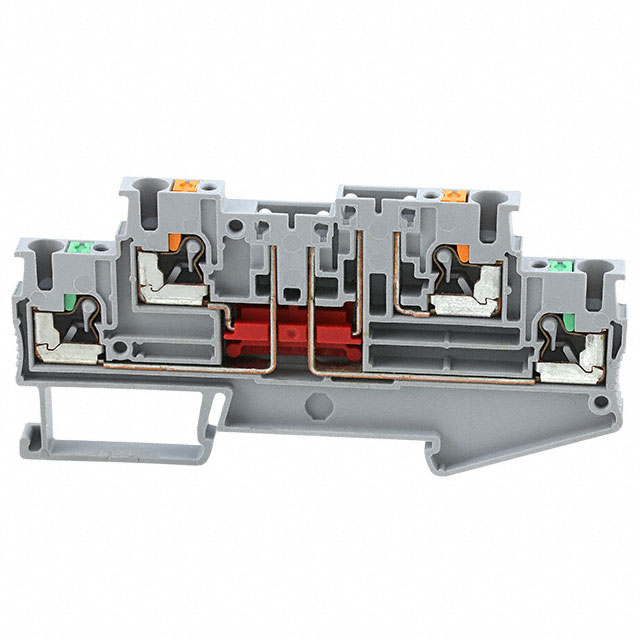

DIN RAIL TERMINAL BLOCKS PTT 2,5-2TG
| Part | Stripping Length | Material - Insulation | Material Flammability Rating | Current - UL | Type | Voltage - IEC | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Current - IEC | Terminal - Width [y] | Number of Levels | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Color | Number of Positions | Termination Style | Voltage - UL | Disconnect Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 8 mm | Nylon Polyamide (PA) | UL94 V-0 | 16 A | Disconnect | 400 V | 12 AWG | 26 AWG | 16 A | 5.2 mm | 2 | 0.14 mm² | 4 mm² | Gray | 4 | Push In | 300 V | Knife Switch |
 Phoenix Contact | 10 A | Disconnect Feed Through | 400 V | 16 AWG | 26 AWG | 9 A | 3.5 mm | 2 | 0.14 mm² | 1.5 mm² | Gray | 4 | Push In | 300 V | Knife Switch |
