305-038 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 38 CONTACTS, PANEL MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Color	Number of Positions/Bay/Row	Contact Type	Number of Positions	Contact Material	Flange Feature	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Type	Number of Rows [custom]	Mounting Type	Gender	Features	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 305-038-555-568	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Female	Card Extender Card Guides	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 305-038-555-502	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Female	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.25 mm	0.128 "
EDAC Inc. 305-038-556-507	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Female	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

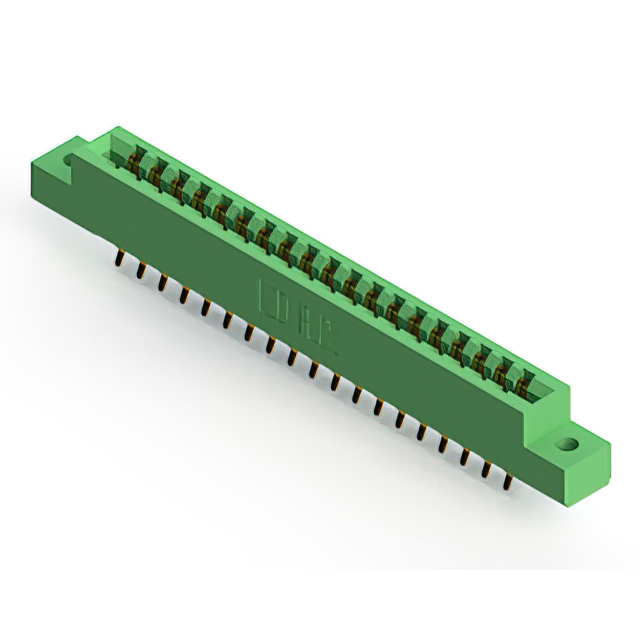

EDAC Inc. 305-038-556-202	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Female	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.25 mm	0.128 "
EDAC Inc. 305-038-520-278	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Panel Mount Through Hole	Female		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

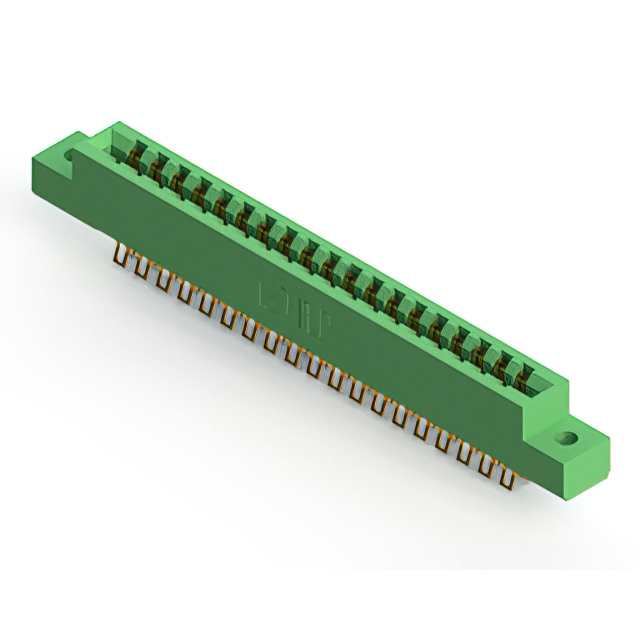

EDAC Inc. 305-038-555-202	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Female	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	3.25 mm	0.128 "

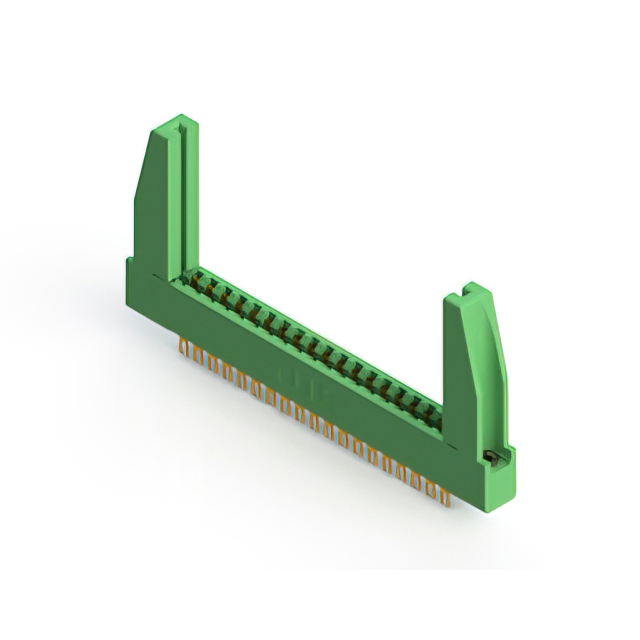

EDAC Inc. 305-038-500-578	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder Eyelet(s)	Non Specified - Dual Edge	2	Panel Mount	Female		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

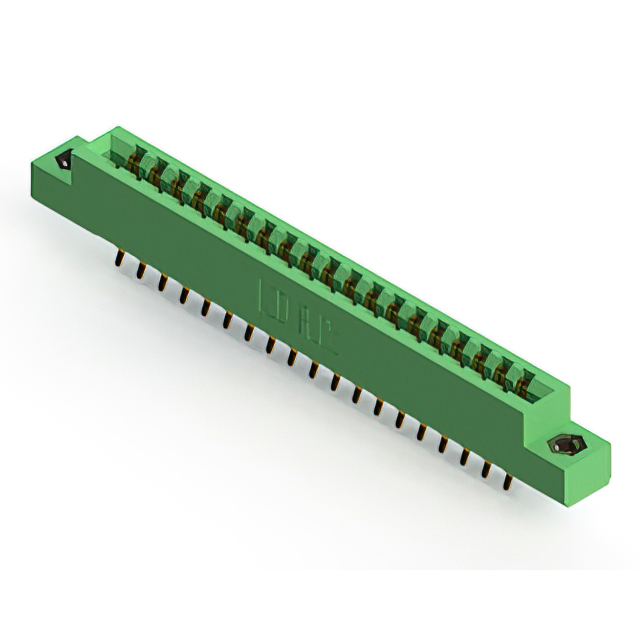

EDAC Inc. 305-038-556-508	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Female	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

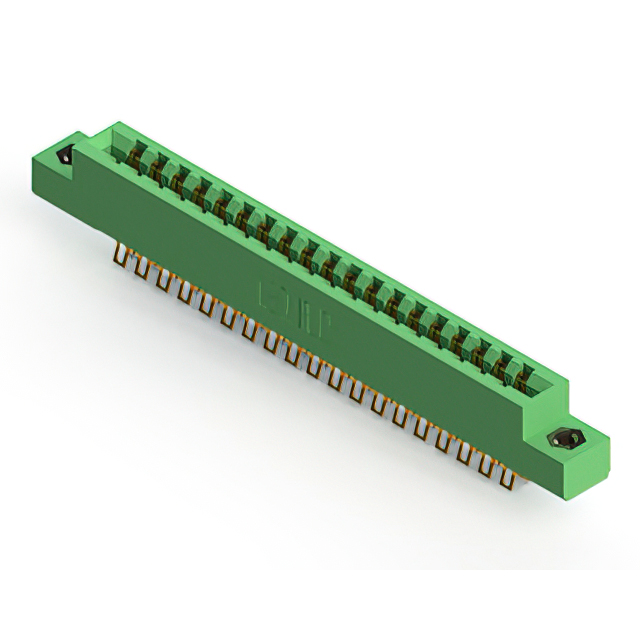

EDAC Inc. 305-038-555-208	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Female	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

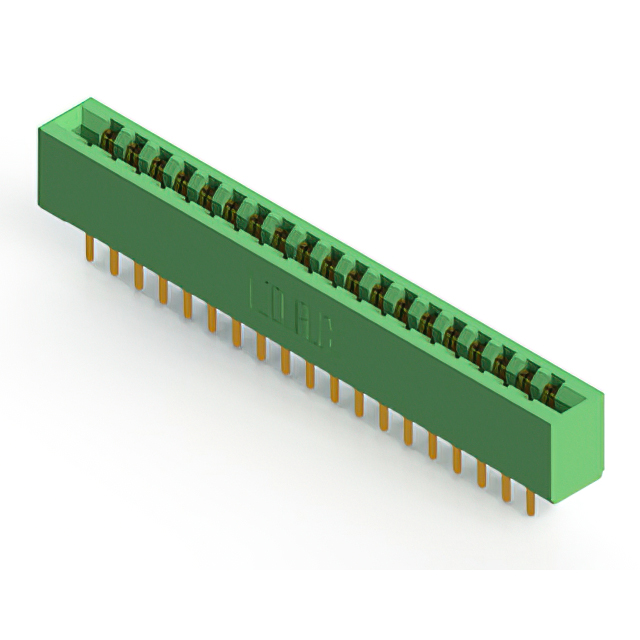

EDAC Inc. 305-038-520-501	Polyester Thermoplastic	2	-40 C	105 ░C	Dual	Green	19	Semi Bellows	38	Copper Alloy		3.96 mm	0.156 in	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	2	Through Hole	Female		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
