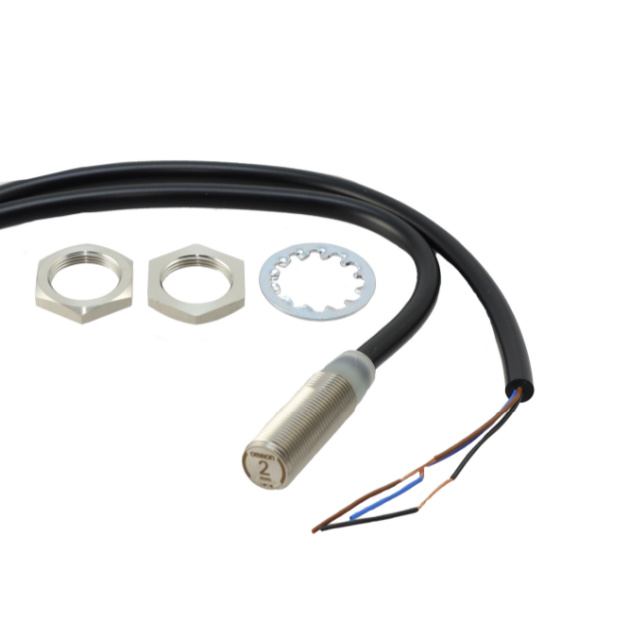

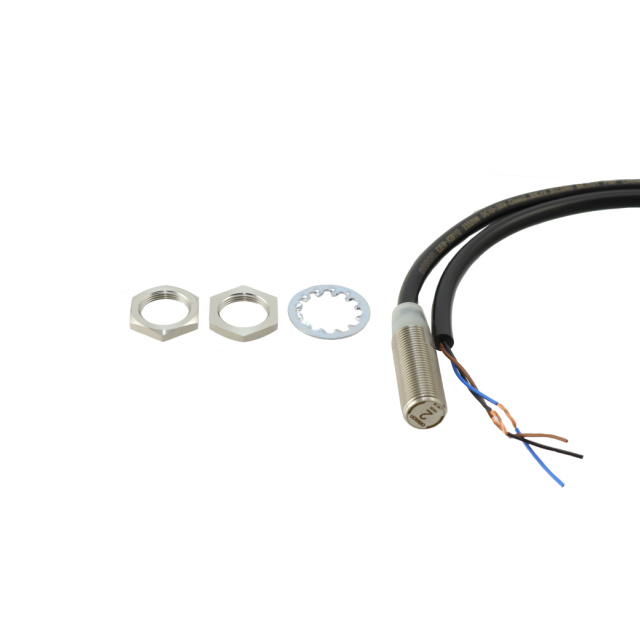

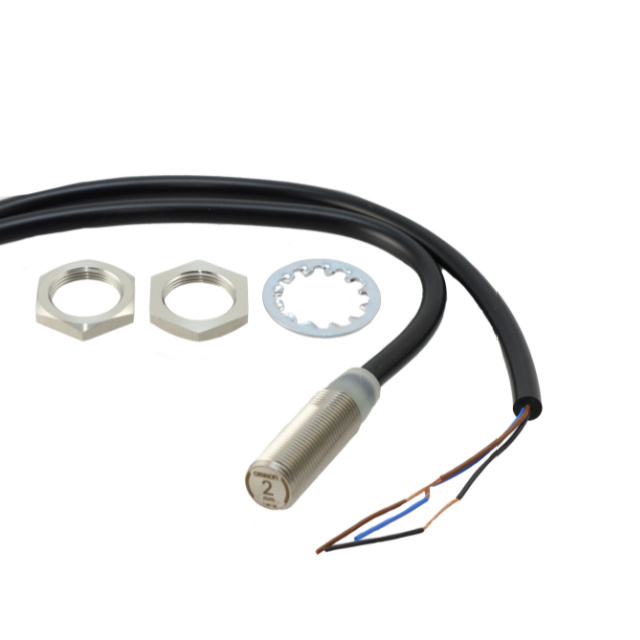

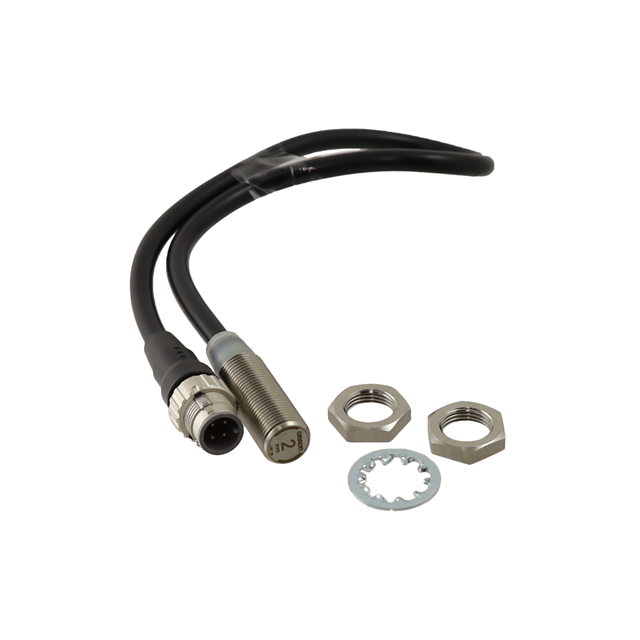

E2EW-X2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SENSOR PROX INDUCTIVE 2MM CYLIND
| Part | Package / Case | Material - Body | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensor Type | Termination Style | Ingress Protection | Response Frequency | Indicator [custom] | Output Type | Sensing Distance | Sensing Distance | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable Leads | IP67 | 100 Hz | LED | NPN-NO 3-Wire | 0.079 in | 2 mm | Shielded |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable Leads | IP67 | 100 Hz | LED | NPN-NC 3-Wire | 0.079 in | 2 mm | Shielded |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable Leads | IP67 | 100 Hz | LED | PNP-NC 3-Wire | 0.079 in | 2 mm | Shielded |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable Leads | IP67 | 100 Hz | LED | PNP-NC 3-Wire | 0.079 in | 2 mm | Shielded |
 Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable Leads | IP67 | 100 Hz | LED | NPN-NO 3-Wire | 0.079 in | 2 mm | Shielded |
 Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable with Connector | IP67 | 100 Hz | LED | PNP-NO 3-Wire | 0.079 in | 2 mm | Shielded |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable Leads | IP67 | 100 Hz | LED | 3-Wire NPN-NC/NO | 0.079 in | 2 mm | Shielded |
 Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable Leads | IP67 | 100 Hz | LED | PNP-NO 3-Wire | 0.079 in | 2 mm | Shielded |
 Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable Leads | IP67 | 100 Hz | LED | PNP-NO 3-Wire | 0.079 in | 2 mm | Shielded |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M12 | Stainless Steel | 0 °C | 85 °C | 30 VDC | 10 VDC | Inductive | Cable Leads | IP67 | 100 Hz | LED | PNP-NC/NO 3-Wire | 0.079 in | 2 mm | Shielded |
