EP-SGL-NPT12 Series

Catalog

CABLE GLAND 6-12MM 1/2" NPT

Part	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Thread Length	Thread Length	Thread Size	Ingress Protection	Type	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max]
TE Connectivity AMP Connectors EP-SGL-NPT12-BL-B	Black Gray	12 mm	0.472 in	-20 ░C	100 °C	0.591 in	15 mm	0.5	IP68 - Dust Tight Waterproof	Cable Gland	Seal	6 mm	0.236 in

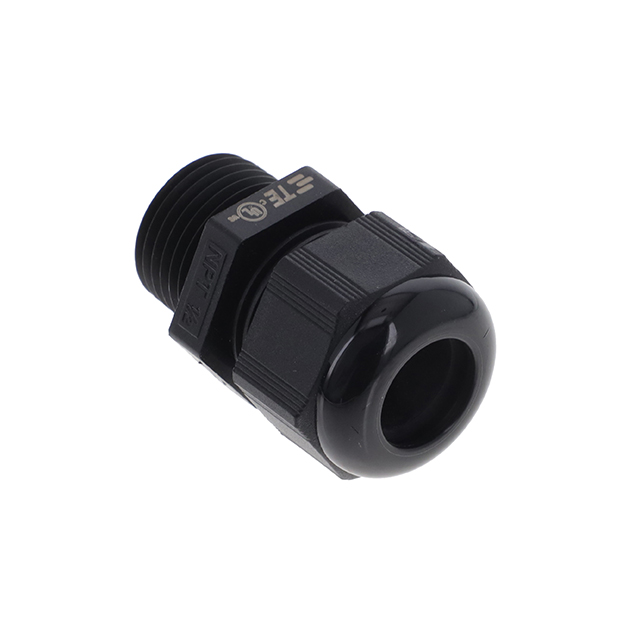

TE Connectivity AMP Connectors EP-SGL-NPT12-BL-D	Black Gray		0.551 in	-20 ░C	100 °C	0.591 in	15 mm	0.5	IP68 - Dust Tight Waterproof	Cable Gland	Seal			14 mm	10 mm	0.394 "
TE Connectivity AMP Connectors EP-SGL-NPT12-GR-B	Gray	12 mm	0.472 in	-20 ░C	100 °C	0.591 in	15 mm	0.5	IP68 - Dust Tight Waterproof	Cable Gland	Seal	6 mm	0.236 in
TE Connectivity AMP Connectors EP-SGL-NPT12-BL-A	Black			-20 ░C	100 °C	0.591 in	15 mm	0.5	IP68 - Dust Tight Waterproof	Cable Gland	Seal	5 mm	0.197 in	9 mm			0.354 in
TE Connectivity AMP Connectors EP-SGL-NPT12-GR-A	Gray			-20 ░C	100 °C	0.591 in	15 mm	0.5	IP68 - Dust Tight Waterproof	Cable Gland	Seal	5 mm	0.197 in	9 mm			0.354 in
