MC35XS3500 Series

Catalog

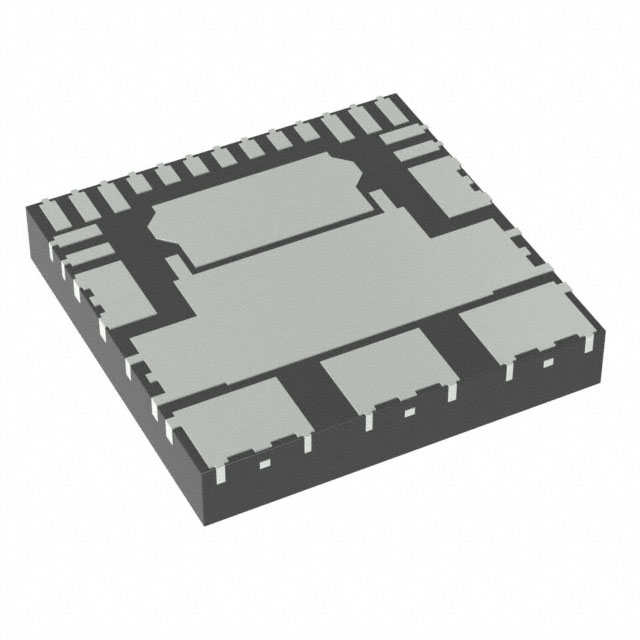

HIGH-SIDE SWITCH, 12V, PENTA 35MOHMS, PQFN 24/ REEL ROHS COMPLIANT: YES

Part	Switch Type	Output Configuration	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Rds On (Typ)	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Output Type	Ratio - Input:Output [custom]	Features	Interface	Fault Protection	Supplier Device Package	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]
Freescale Semiconductor - NXP MC35XS3500HFKR2	General Purpose	High Side	5.5 V	3 V	Surface Mount	35 mOhm	7 V	20 V	24-PowerQFN	N-Channel	1:6	Watchdog Timer	SPI	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	24-PQFN (12x12)	6	150 °C	-40 °C
Freescale Semiconductor - NXP MC35XS3500DHFKR2	General Purpose	High Side	5.5 V	3 V	Surface Mount	35 mOhm	7 V	20 V	24-PowerQFN	N-Channel	1:6	Watchdog Timer	SPI	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	24-PQFN (12x12)	6	150 °C	-40 °C
