8340 Series
Manufacturer: Belden Inc.
Beta
⌘K

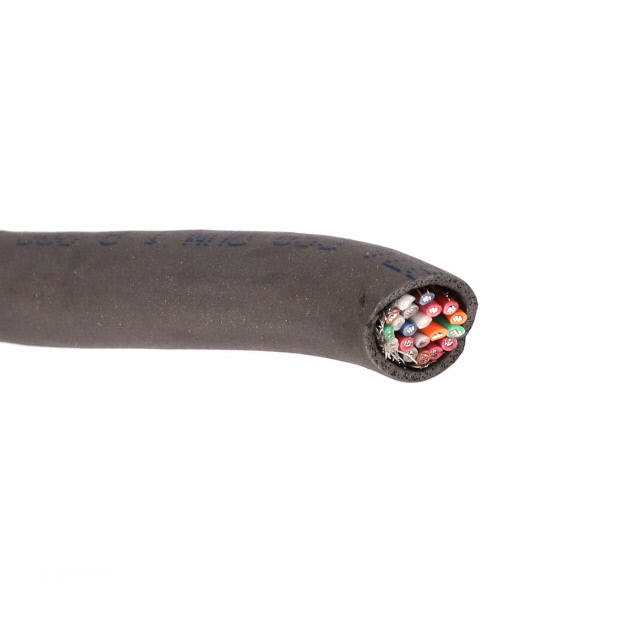

MULTI-PAIR 20COND 24AWG
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Number of Conductors | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Material | Wire Gauge | Conductor Material | Jacket Color | Conductor Insulation | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | 100 ft | 30.5 m | 0.385 in | 9.78 mm | Computer | 7 | 32 AWG | UL Style 2464 | 20 | Braid Foil | 0.035 in | 0.889 mm | Multi-Pair | Poly-Vinyl Chloride (PVC) | 24 AWG | Copper Tinned | Chrome | Poly-Vinyl Chloride (PVC) | |||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | 0.385 in | 9.78 mm | Computer | 7 | 32 AWG | UL Style 2464 | 20 | Braid Foil | 0.035 in | 0.889 mm | Multi-Pair | Poly-Vinyl Chloride (PVC) | 24 AWG | Copper Tinned | Chrome | Poly-Vinyl Chloride (PVC) | 300 VDC | 152.4 m | 500 ft |
