307-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K

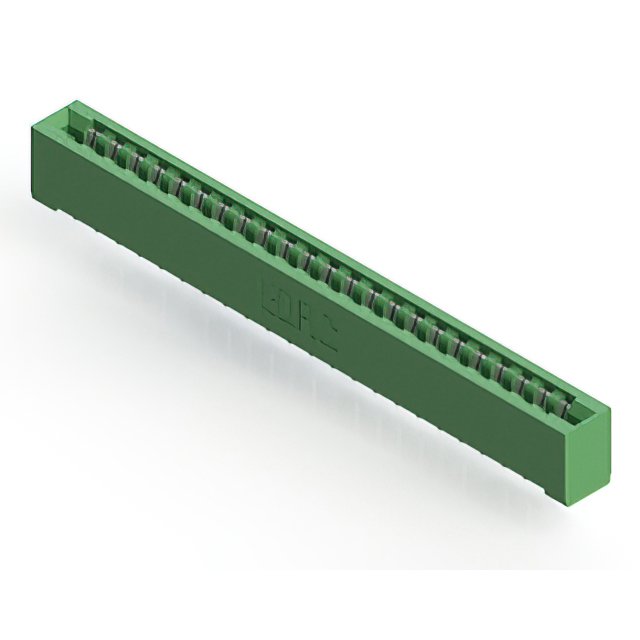

CONN EDGE SGL FMALE 23POS 0.156
| Part | Material - Insulation | Termination Rows | Gender | Pitch | Pitch | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Flange Feature | Number of Rows | Color | Contact Material | Contact Finish | Read Out | Termination | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions/Bay/Row | Features | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Green | Copper Alloy | Gold | Single | Wire Wrap | Semi Bellows | 0.25 Ám | 10 Áin | Through Hole | 23 | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Dual Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 46 | 4-40 Flush Mount Threaded Insert Top Opening | Green | Copper Alloy | Tin | Dual | Solder | Semi Bellows | Right Angle Through Hole | 23 | Card Guides | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | Floating Bobbin Flush Mount | 1 | Green | Copper Alloy | Tin | Single | Solder | Semi Bellows | Right Angle Through Hole | 23 | 0.116 " | 2.95 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Green | Copper Alloy | Tin | Single | Solder | Semi Bellows | Through Hole | 23 | Card Guides | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | Flush Mount M3 Threaded Insert Top Opening | 1 | Green | Copper Alloy | Gold | Single | Solder | Semi Bellows | 0.25 Ám | 10 Áin | Through Hole | 23 | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Dual Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 46 | Green | Copper Alloy | Tin | Dual | Solder Eyelet(s) | Semi Bellows | Through Hole | 23 | 2 | |||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | Flush Mount Top Opening Unthreaded | 1 | Green | Copper Alloy | Tin | Single | Solder | Semi Bellows | Through Hole | 23 | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Green | Copper Alloy | Tin | Single | Solder | Semi Bellows | Through Hole | 23 | Card Guides | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Dual Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 46 | Green | Copper Alloy | Tin | Dual | Solder | Semi Bellows | Right Angle Through Hole | 23 | 2 | |||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | Flush Mount Side Opening Unthreaded | 1 | Green | Copper Alloy | Gold | Single | Solder | Semi Bellows | 0.25 Ám | 10 Áin | Through Hole | 23 | 0.128 " | 3.25 mm |
