BM2SCQ124T-LBZ Series
Quasi-resonant AC/DC Converter with Built-in 1700 V SiC-MOSFET
Manufacturer: Rohm Semiconductor
Catalog
Quasi-resonant AC/DC Converter with Built-in 1700 V SiC-MOSFET
Key Features

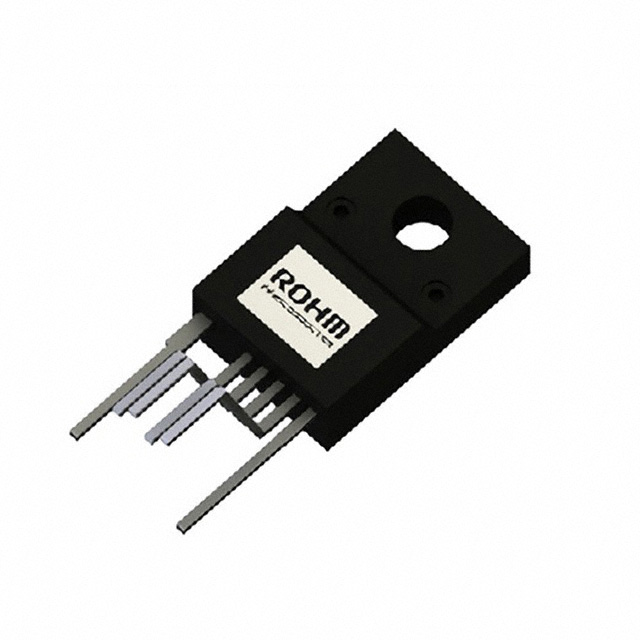

• Long Time Support Product for Industrial Applications, 6 Pins: TO220-6M Package, Built-in 1700 V/4 A/1.2 Ω SiC-MOSFET, Quasi-resonant Type (Low EMI), Frequency Reduction Function, Low Current Consumption (19 μA) during Standby, Burst Operation at Light Load, SOURCE Pin Leading Edge Blanking, VCC UVLO (Under Voltage Drop Out protection), VCC OVP (Over Voltage Protection), Over Current Protection Circuit per Cycle, Soft Start Function, ZT Pin Trigger Mask Function, ZT OVP (Over Voltage Protection)
Description
AI
BM2SCQ124T-LBZ is a quasi-resonant AC/DC converter that provides an optimum system for all products which has an electrical outlet. Quasi-resonant operation enables soft switching and helps to keep the EMI low. This IC can be designed easily because it includes the 1700 V/4 A SiC (Silicon-Carbide) MOSFET. Design with a high degree of flexibility is achieved with current detection resistors as external devices. The burst operation reduces an input power at light load. It includes various protection functions, such as soft start function, burst operation, over current limiter per cycle, over-voltage protection function, overload protection function.You can choose from a variety of power and topologyevaluation boards.
