130E40504 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

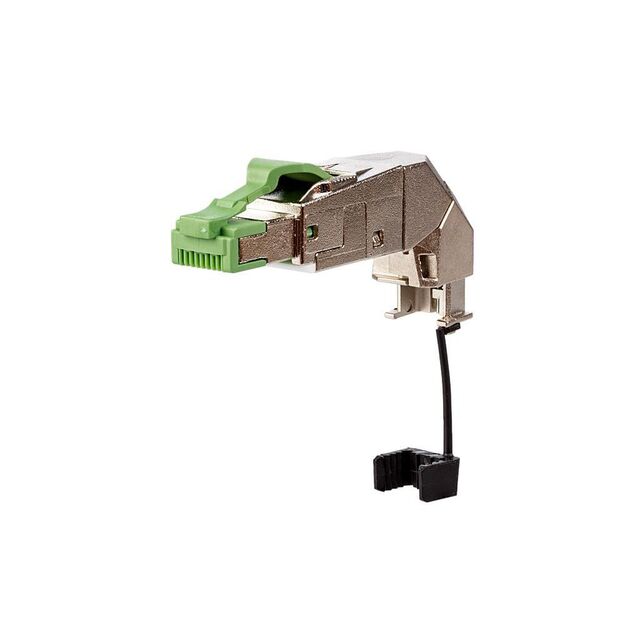

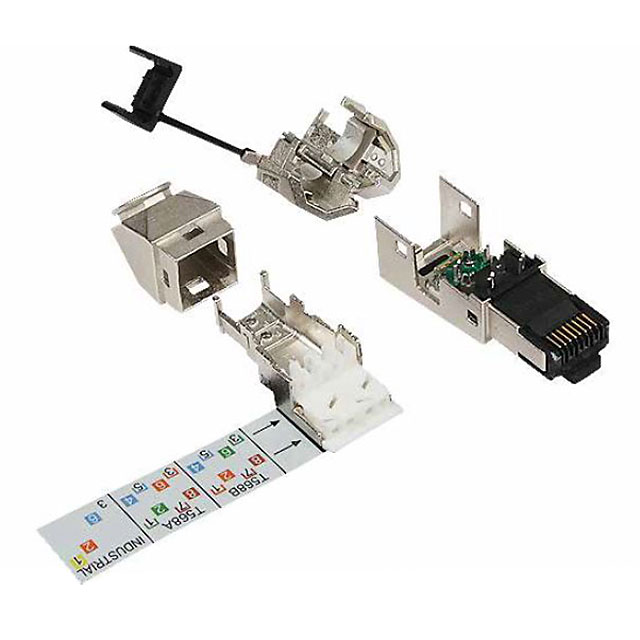

CAT 6A RJ45 FIELD PLUG PRO 360
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Current Rating (Amps) | Contact Finish | Housing Material | Voltage Rating | Ratings | Termination | Connector Type | Cable Type | Color | Number of Positions/Contacts | Shielding | Ingress Protection | Length [x] | Length | Features | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 27 AWG | 22 AWG | Tin Bronze | 1 A | Gold | Zinc Die Cast | 50 V | Cat6a | IDC | Plug | Round Cable Solid or Stranded Wires | Black | 8p8c (RJ45 Ethernet) | Shielded | IP20 | 1.96 in | 49.78 mm | Angled - 90° Housing Locking Hook Strain Relief | |||
 METZ CONNECT USA Inc. | 27 AWG | 22 AWG | Tin Bronze | 1 A | Gold | Zinc Die Cast | 50 V | Cat5 | IDC | Plug | Round Cable Solid or Stranded Wires | Green | Shielded | IP20 | 49.8 mm | Angled - 90° Housing Locking Hook Strain Relief | 4 | 8 | 1.961 in |
