9013-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

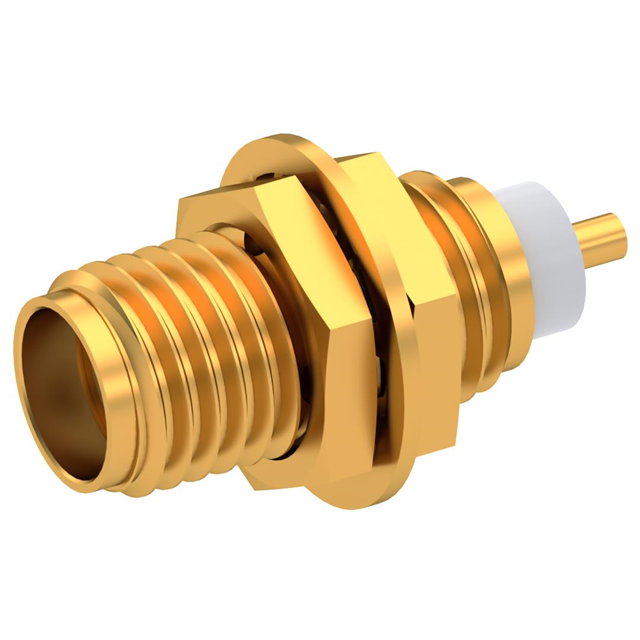

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Mating Cycles | Body Finish | Center Contact Plating | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Frequency - Max [Max] | Fastening Type | Number of Ports | Shield Termination | Housing Color | Connector Style | Impedance | Mounting Type | Connector Type | Center Contact Material | Features | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Gold | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | Bulkhead - Front Side Nut | 18 GHz | Threaded | 1 | Solder | Gold | SMA | 50 Ohms | Panel Mount Through Hole | Female Socket Jack | Beryllium Copper | Extended Insulation | Solder |
