CES-39209 Series

Catalog

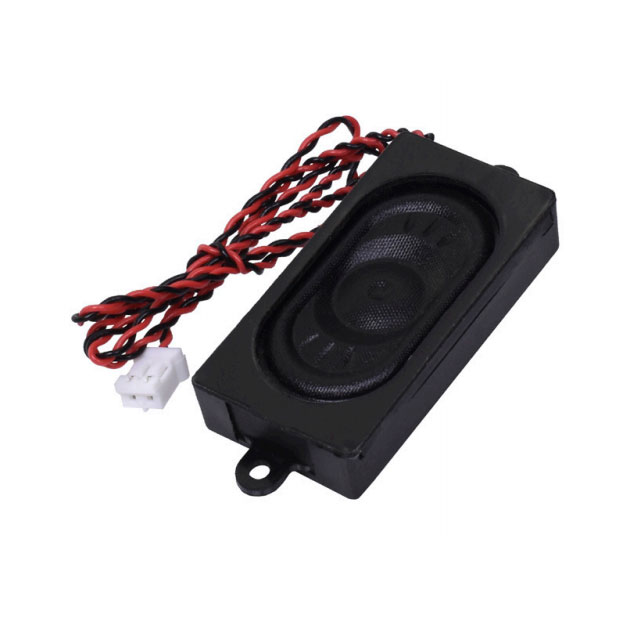

SPEAKER 8OHM 2W TOP PORT 88DB

Part	Termination	Shape	Impedance	Material - Magnet	Efficiency - Type	Efficiency - dBA	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - Testing	Power - Rated	Type	Material - Cone	Frequency - Self Resonant	Port Location	Frequency Range [Max]	Frequency Range [Min]	Technology	Power - Max [Max]	Distortion Rating	Operating Temperature [Min]	Operating Temperature [Max]
Same Sky (Formerly CUI Devices) CES-39209-28PM	Wire Leads with Connector	Rectangular	8 Ohms	Nd-Fe-B	Sound Pressure Level (SPL)	88 dBA	1.732 in	0.787 in	44 mm	20 mm	9.3 mm	0.366 in	10 cm 100 mW	2 W	General Purpose Enclosure Included	Cloth	1200 Hz	Top	20 kHz	960 Hz	Magnetic	2.5 W
Same Sky (Formerly CUI Devices) CES-39209-28PM	Wire Leads with Connector	Rectangular	8 Ohms	Nd-Fe-B	Sound Pressure Level (SPL)	88 dBA	1.732 in	0.787 in	44 mm	20 mm	9.3 mm	0.366 in	10 cm 100 mW	2 W	General Purpose Enclosure Included	Cloth	1200 Hz	Top	20 kHz	960 Hz	Magnetic	2.5 W	10 %	-20 ░C	60 °C
