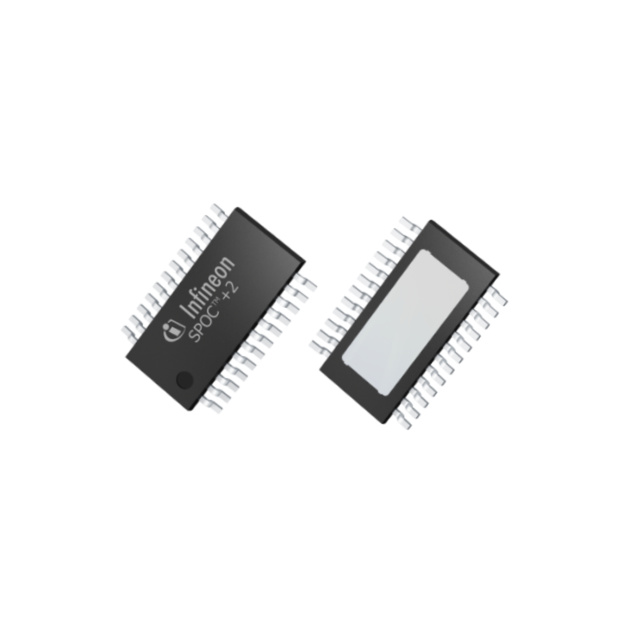

BTS71040 Series
Manufacturer: INFINEON
Beta
⌘K
THE BTS71040-4ESE IS A SPI POWER CONTROLLER, PROVIDING PROTECTION FUNCTIONS AND DIAGNOSIS
| Part | Ratio - Input:Output | Output Type | Grade | Number of Outputs | Supplier Device Package | Rds On (Typ) | Package / Case | Switch Type | Interface | Voltage - Supply (Vcc/Vdd) | Qualification | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Output Configuration | Fault Protection | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 1:2 | N-Channel | Automotive | 4 | PG-TSDSO-24 | 22.5 mOhm | 24-TSSOP (0.154" 3.90mm Width) Exposed Pad | General Purpose | SPI | Not Required | AEC-Q100 | Surface Mount | -40 °C | 150 °C | 3 A | 18 V | 6 V | High Side | Over Current Over Voltage Short Circuit UVLO | Non-Inverting |
