ABS05 Series

Catalog

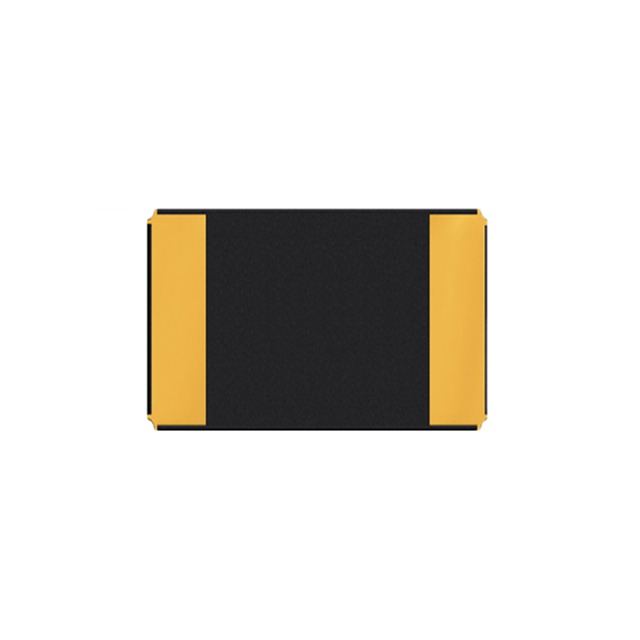

CRYSTAL, 32.768KHZ, 4PF, SMD, 1.6MM X1MM ROHS COMPLIANT: YES

Part	Package / Case	Mounting Type	Operating Mode	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Tolerance	ESR (Equivalent Series Resistance)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Load Capacitance
Abracon LLC ABS05-32.768KHZ-X-T5	2-SMD No Lead	Surface Mount	Fundamental	kHz Crystal (Tuning Fork)	1 mm	0.063 "	1.6 mm	0.039 in	0.032768 MHz	85 °C	-40 C	20 ppm	90 kOhms	2-SMD (1.6x1)	0.02 in	0.5 mm	4 pF
Abracon LLC ABS05-32.768kHz-6-T	2-SMD No Lead	Surface Mount	Fundamental	kHz Crystal (Tuning Fork)	1 mm	0.063 "	1.6 mm	0.039 in	0.032768 MHz	85 °C	-40 C	20 ppm	90 kOhms	2-SMD (1.6x1)	0.02 in	0.5 mm	6 pF
