ATV320 Series

Catalog

VARIABLE SPEED DRIVE, ALTIVAR MACHINE ATV320 SERIES, THREE PHASE, 2.2 KW, 11 A, 240 VAC

Part	Wattage - Load	Current - Output	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Interface

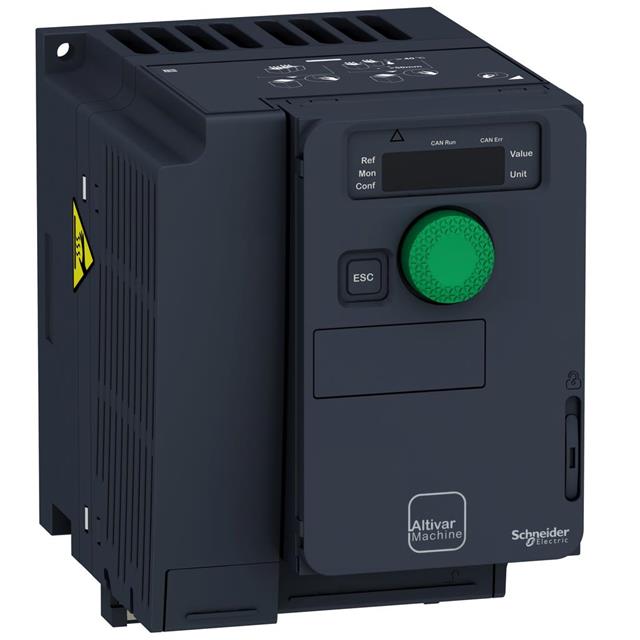

SCHNEIDER ELECTRIC ATV320U22M3C	2.2 kW	11 A	Chassis Mount	200 V	240 V	-10 °C	60 °C
SCHNEIDER ELECTRIC ATV320U11M3C	1100 W	6.9 A	Chassis Mount	200 V	240 V	-10 °C	60 °C	CAN
SCHNEIDER ELECTRIC ATV320U15M2C	1.5 kW	8 A	Chassis Mount	200 V	240 V	-10 °C	60 °C	CAN
SCHNEIDER ELECTRIC ATV320U30N4WS	3 kW		Chassis Mount	380 V	500 V	-10 °C	60 °C	CAN
SCHNEIDER ELECTRIC ATV320U22M2B	15000 W	11 A	Chassis Mount	200 V	240 V	-10 °C	60 °C
SCHNEIDER ELECTRIC ATV320U15N4W	1.5 kW	4.1 A	Chassis Mount	380 V	500 V	-10 °C	60 °C	CAN
SCHNEIDER ELECTRIC ATV320U06N4W	550 W	1.9 A	Chassis Mount	380 V	500 V	-10 °C	60 °C	CAN
SCHNEIDER ELECTRIC ATV320U06N4WS	550 W	1.9 A	Chassis Mount	380 V	500 V	-10 °C	60 °C	CAN
SCHNEIDER ELECTRIC ATV320U04N4C	370 W	3.3 A	Chassis Mount	200 V	240 V	-10 °C	60 °C

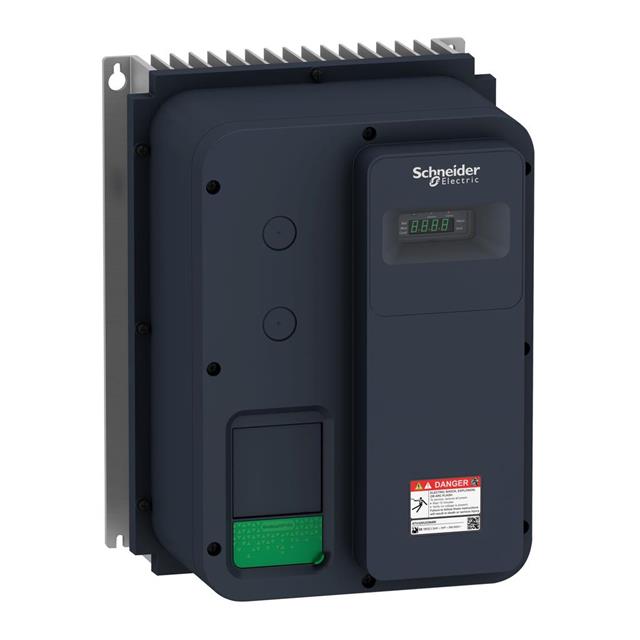

SCHNEIDER ELECTRIC ATV320U40N4W	55 kW	9.5 A	Chassis Mount	380 V	500 V	-10 °C	60 °C
