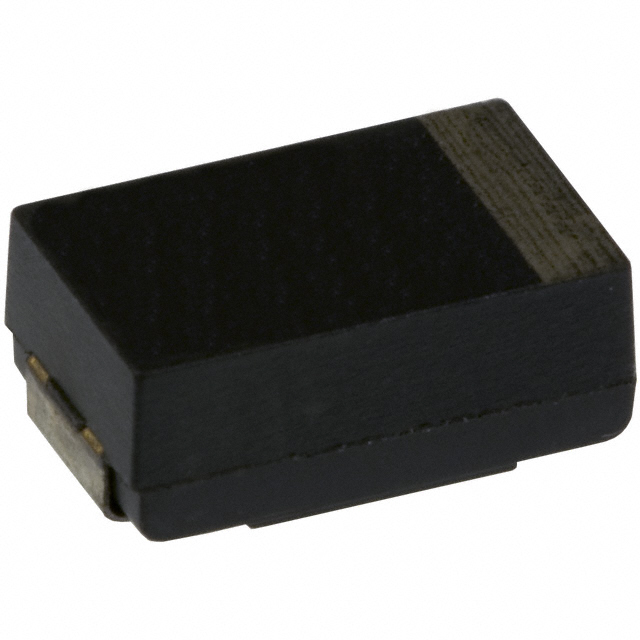

EEF-UD Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
CAP ALUM POLY 180UF 20% 2.5V SMD
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) | Height - Seated (Max) [Max] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Package / Case | Package / Case | Lifetime @ Temp. | Capacitance | Voltage - Rated | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | ESR (Equivalent Series Resistance) | Type | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 1000 Hrs | 180 çF | 2.5 V | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | 12 mOhms | Polymer | |
Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 7343 Metric | 2917 | 1000 Hrs | 150 µF | 2.5 V | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Polymer | ||||||
Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 1000 Hrs | 330 µF | 2 VDC | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Polymer | ||
Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 1000 Hrs | 150 µF | 6.3 V | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | 9 mOhms | Polymer | 3.4 A |
Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 1000 Hrs | 150 µF | 4 V | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | 9 mOhms | Polymer | 3.4 A |
Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 1000 Hrs | 270 µF | 2 VDC | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | 9 mOhms | Polymer | |
Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 1000 Hrs | 220 µF | 2.5 V | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Polymer | ||
Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 1000 Hrs | 180 çF | 4 V | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Polymer | 2.5 A | |
Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 1000 Hrs | 150 µF | 6.3 V | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Polymer | ||
Panasonic Industrial Automation Sales | Surface Mount | -40 °C | 105 ░C | 3 mm | 0.118 in | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7343 Metric | 2917 | 1000 Hrs | 180 çF | 4 V | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 20 % | Polymer |
