EH28-3 Series

Catalog

CMC 9MH 3A 2LN TH

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Mounting Type	Filter Type	Current Rating (Max) [Max]	Package / Case	Voltage Rating - AC	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max] [z]	Height (Max) [Max] [z]

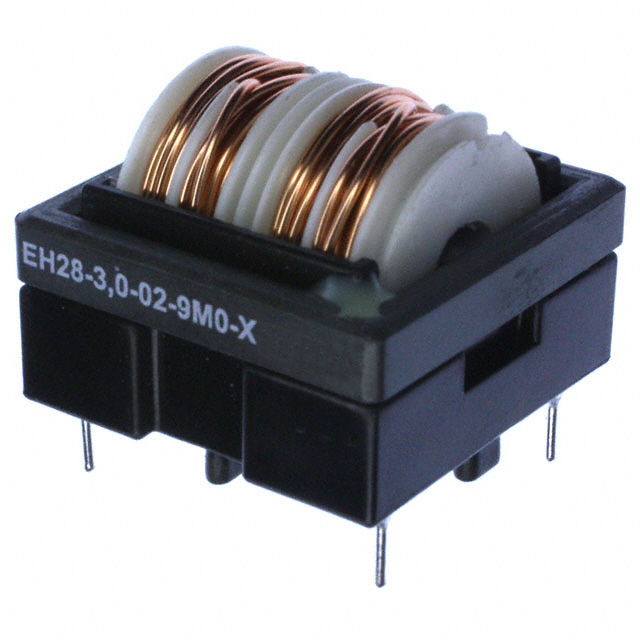

TE Connectivity AMP Connectors EH28-3.0-02-9M0-X	28 mm	1.102 "	28 mm	1.102 "	115 mOhm	9 mH	Through Hole	Power Line	3 A	4 PC Pin Horizontal	250 V	2	100 °C	-25 °C	0.941 in	23.9 mm
TE Connectivity AMP Connectors EH28-3.0-02-9M0-X	28 mm	1.102 "	28 mm	1.102 "	115 mOhm	9 mH	Through Hole	Power Line	3 A	4 PC Pin Horizontal	250 V	2	100 °C	-25 °C	0.941 in	23.9 mm
