CD1408 Series

Catalog

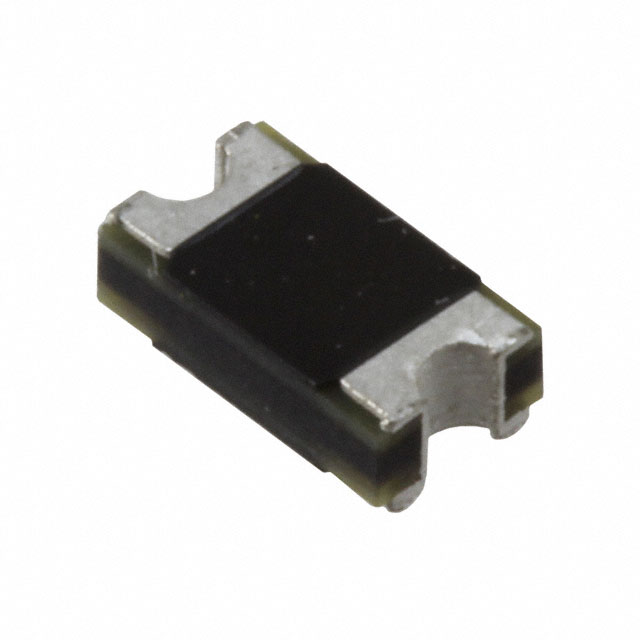

DIODE STANDARD 1500V 1A 1408

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Supplier Device Package	Speed	Mounting Type	Current - Reverse Leakage @ Vr	Package / Case	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If [Max]	Speed [Min]
Bourns Inc. CD1408-FF11500	1500 V	6 V	175 ░C	-65 C	Standard	1408	200 mA 500 ns	Surface Mount	5 µA	Chip Concave Terminals	50 ns	1 A
Bourns Inc. CD1408-F1400	400 V		175 ░C	-65 C	Standard	1408	200 mA 500 ns	Surface Mount	5 µA	Chip Concave Terminals	300 ns	1 A	15 pF	1.3 V
Bourns Inc. CD1408-F1800	800 V		175 ░C	-65 C	Standard	1408	200 mA 500 ns	Surface Mount	5 µA	Chip Concave Terminals	300 ns	1 A	15 pF	1.3 V
Bourns Inc. CD1408-FU1600	600 V		175 ░C	-65 C	Standard	1408	200 mA 500 ns	Surface Mount	5 µA	Chip Concave Terminals	35 ns	1 A	10 pF	1.25 V
Bourns Inc. CD1408-FF11000	1000 V	1.7 V	175 ░C	-65 C	Standard	1408	200 mA 500 ns	Surface Mount	5 µA	Chip Concave Terminals	75 ns	1 A	10 pF
Bourns Inc. CD1408-R1400	400 V		175 ░C	-65 C	Standard	1408		Surface Mount	1 µA	Chip Concave Terminals	3 çs	1 A		1 V	200 mA 500 ns
Bourns Inc. CD1408-F1600	600 V		175 ░C	-65 C	Standard	1408	200 mA 500 ns	Surface Mount	5 µA	Chip Concave Terminals	300 ns	1 A	15 pF	1.3 V
Bourns Inc. CD1408-FU1400	400 V	1.05 V	175 ░C	-65 C	Standard	1408	200 mA 500 ns	Surface Mount	5 µA	Chip Concave Terminals	35 ns	1 A	10 pF
Bourns Inc. CD1408-F11000	1000 V		175 ░C	-65 C	Standard	1408	200 mA 500 ns	Surface Mount	5 µA	Chip Concave Terminals	300 ns	1 A	15 pF	1.3 V
