NREC004 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

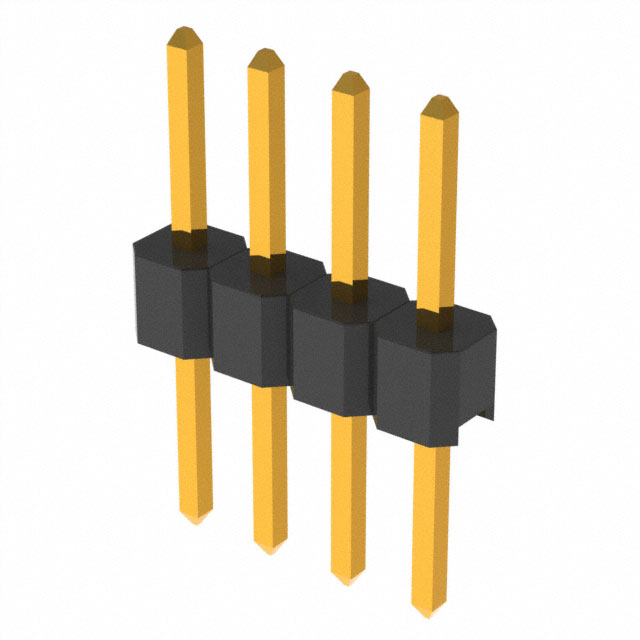

CONN HEADER VERT 4POS 2.54MM
| Part | Style | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Insulation Height | Insulation Height | Connector Type | Shrouding | Number of Rows | Contact Type | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Number of Positions | Termination | Material Flammability Rating | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Contact Material | Current Rating (Amps) | Mounting Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Board to Board Cable | -40 C | 105 ░C | Black | 0.098 " | 2.5 mm | Header Breakaway | Unshrouded | 1 | Male Pin | 0.1 " | 2.54 mm | Square | 0.23 in | 5.84 mm | Push-Pull | 5.84 mm | 0.23 " | Tin | 4 | Solder | UL94 V-0 | 0.558 in | 14.18 mm | All | Brass | 3 A | Through Hole | Nylon 6T Polyamide (PA6T) |
