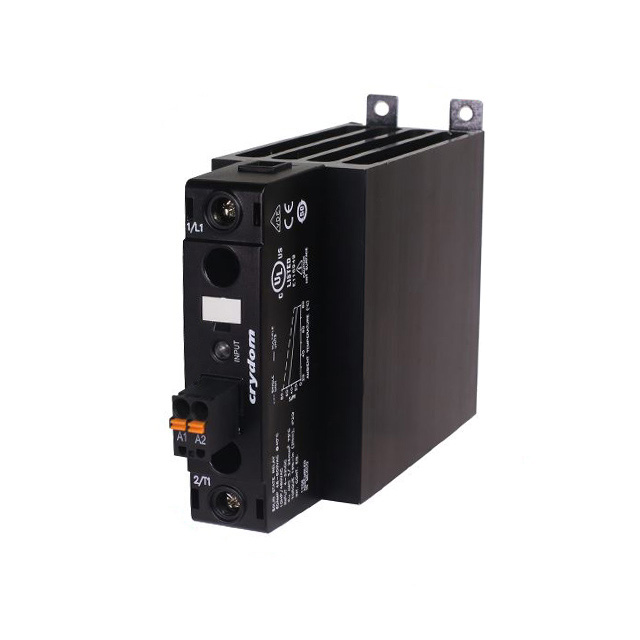

DR4560 Series

Catalog

SSR RELAY SPST-NO 45A 48-600V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Load Current	Output Type	Mounting Type	Package / Case	Termination Style
Sensata-Crydom DR4560A45R	280 VAC/DC	90 VAC	cULus VDE	80 °C	-40 C	600 V	48 V	45 A	AC	DIN Rail	SSR with Integrated Heat Sink	Screw Terminal
Sensata-Crydom DR4560A60J	280 VAC/DC	90 VAC	cULus VDE	80 °C	-40 C	600 V	48 V	60 A	AC Zero Cross	DIN Rail	SSR with Integrated Heat Sink	Spring Terminal
Sensata-Crydom DR4560D45P	32 VDC	4 V	cULus VDE	80 °C	-40 C	600 V	48 V	45 A	AC Zero Cross	DIN Rail	SSR with Integrated Heat Sink	Screw Terminal
Sensata-Crydom DR4560D60RJ	32 VDC	4 V	cULus VDE	80 °C	-40 C	600 V	48 V	60 A	AC	DIN Rail	SSR with Integrated Heat Sink	Spring Terminal
Sensata-Crydom DR4560D60RP	32 VDC	4 V	cULus VDE	80 °C	-40 C	600 V	48 V	60 A	AC	DIN Rail	SSR with Integrated Heat Sink	Screw Terminal
Sensata-Crydom DR4560A60RP	280 VAC/DC	90 VAC	cULus VDE	80 °C	-40 C	600 V	48 V	60 A	AC	DIN Rail	SSR with Integrated Heat Sink	Screw Terminal
Sensata-Crydom DR4560D60	32 VDC	4 V	cULus VDE	80 °C	-40 C	600 V	48 V	60 A	AC Zero Cross	DIN Rail	SSR with Integrated Heat Sink	Screw Terminal
Sensata-Crydom DR4560A60R	280 VAC/DC	90 VAC	cULus VDE	80 °C	-40 C	600 V	48 V	60 A	AC	DIN Rail	SSR with Integrated Heat Sink	Screw Terminal
Sensata-Crydom DR4560A60	280 VAC/DC	90 VAC	cULus VDE	80 °C	-40 C	600 V	48 V	60 A	AC Zero Cross	DIN Rail	SSR with Integrated Heat Sink	Screw Terminal
Sensata-Crydom DR4560D45RP	32 VDC	4 V	cULus VDE	80 °C	-40 C	600 V	48 V	45 A	AC	DIN Rail	SSR with Integrated Heat Sink	Screw Terminal
