MA-36DS Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

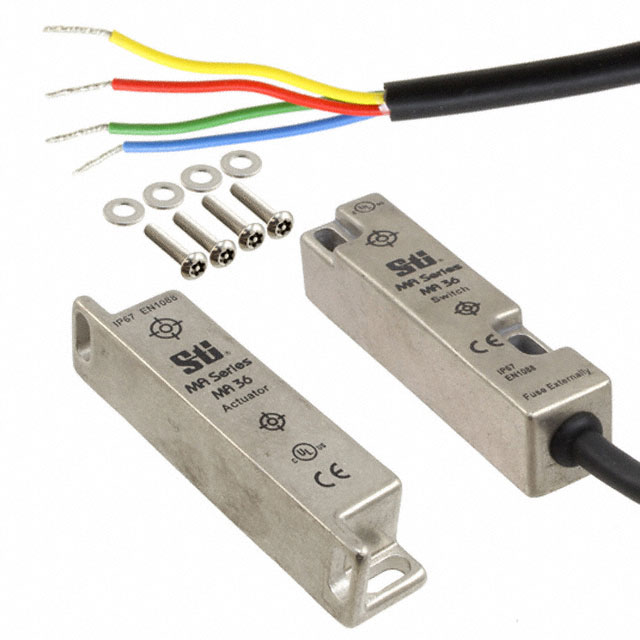

INTERLOCK MAGNETIC DPST
| Part | Actuator Type | Circuit | Must Operate [Min] | Must Operate [Max] | Voltage Rating | Current Rating (Amps) | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Type | Termination Style | Must Release [Max] | Must Release [Min] | Approval Agency | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non-Contact | DPST-NO/NC | 7 mm | 12 mm | 30 VDC | 1 A | 55 °C | -10 °C | Magnetic | Cable Leads | 25 mm | 12 mm | CE cULus | IP67 - Dust Tight Waterproof |
Omron Electronics Inc-EMC Div | Non-Contact | SPST-NC | 7 mm | 12 mm | 30 VDC | 1 A | 55 °C | -10 °C | Magnetic | Cable Leads | 25 mm | 12 mm | CE cULus | IP67 - Dust Tight Waterproof |
